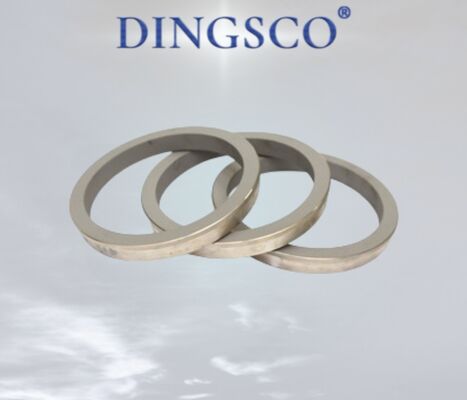

Ni-Cr Alloy Wear-Resistant Ring X-750/N07750 High Temperature Superalloy

Ni-Cr Alloy Wear-Resistant Ring X-750/N07750 High Temperature Superalloy
Ni-Cr Alloy Wear-Resistant Ring X-750/N07750 High Temperature Superalloy

Large Image :  Ni-Cr Alloy Wear-Resistant Ring X-750/N07750 High Temperature Superalloy

Product Details:
Place of Origin: China
Brand Name: DINGSCO
Certification: ISO 9001：2015, PED 2014/68 EU, API 6A, API-20B, TSG, NORSOK
Model Number: According to customers' requests
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: According to customers' requests
Delivery Time: (Sample order) 7 days
Payment Terms: T/T
Supply Ability: Negotiable
Contact Now Chat Now

Ni-Cr Alloy Wear-Resistant Ring X-750/N07750 High Temperature Superalloy

Description
Product Name: Ni-Cr Alloy Wear-Resistant Ring X-750/N07750 High Temperature Superalloy Alloy Type: Inconel X-750 / UNS N07750 / W-Nr. 2.4669 / GH4145
Type: Ni-Cr Alloy Wear-Resistant Ring Quality Control: MTR/NDT/UT/PT...
Application: Aerospace; Energy & Power; Oil & Gas; Chemical Processing; Automotive Service: Customized

Ni-Cr Alloy Wear-Resistant Ring X-750/N07750 High Temperature Superalloy



Inconel X-750 Wear-Resistant Ring | High-Performance Solution for Extreme Wear & Corrosion Environments

Inconel X-750 wear-resistant rings are premium sealing and load-bearing components engineered for harsh industrial applications combining high temperature, severe wear, and aggressive chemical exposure. As a precipitation-hardened nickel-chromium superalloy (UNS N07750 / W-Nr. 2.4669 / GH4145), X-750 delivers exceptional wear resistance through a unique combination of high hardness, precipitation strengthening, and corrosion resistance, outperforming conventional stainless steels and even some cobalt-based alloys in critical operating conditions.



Core Material & Wear Resistance Mechanism

Category

Details

Alloy Designation

Inconel X-750 (UNS N07750, W-Nr. 2.4669, GH4145, 2.4669)

Material Type

Precipitation-hardened nickel-chromium superalloy (γ" phase strengthened)

Strengthening Phase

γ" [Ni₃(Al, Ti, Nb)] + γ' [Ni₃(Al, Ti)] dual-phase precipitation strengthening

Wear Resistance Source

High hardness (HRB 96 / HRC 36-42), fine grain structure, and corrosion-resistant passive film

Operating Temperature

Up to 700°C (1290°F) continuous service; short-term up to 820°C (1500°F)

Key Advantages

Excellent combination of wear resistance, corrosion resistance, creep resistance, and stress relaxation resistance



Typical Wear-Resistant Applications

Industry

Key Applications

Wear Challenges Addressed

Aerospace

Aero-engine bearing retainers, turbine shaft wear rings, high-temperature fastener washers

High-speed rotation wear, jet fuel corrosion, thermal cycling fatigue

Energy & Power

Gas turbine shaft seals, steam turbine valve seats, nuclear reactor control rod guides

High-temperature creep wear, steam oxidation, radiation-induced corrosion

Oil & Gas

Downhole tool centralizers, subsea wellhead seals, drill bit bearings

Sand abrasion, H₂S/CO₂ corrosion, high-pressure erosion

Chemical Processing

Pump and valve wear rings, reactor agitator seals, heat exchanger tube sheets

Slurry erosion, chemical corrosion, temperature fluctuation wear

Automotive

Turbocharger bearing housings, exhaust system components, high-performance engine valve guides

Exhaust gas corrosion, high-temperature wear, mechanical friction





Customization & Quality Assurance

We offer full-range customization options to meet your specific wear resistance requirements:

  1. Size Customization: Outer diameter, inner diameter, thickness, and profile can be tailored to your equipment drawings

  2. Surface Enhancement: Optional wear-resistant coatings (plasma nitriding, DLC, etc.) to further improve service life

  3. Heat Treatment Optimization: Custom aging cycles for specific operating temperatures and load conditions

  4. Quality Documentation: Complete Material Test Reports (MTR), hardness test results, grain size analysis, and non-destructive testing (NDT) records

All Inconel X-750 wear rings undergo rigorous quality control including ultrasonic testing, magnetic particle inspection, and dimensional verification to ensure compliance with aerospace and industrial standards.



Why Choose Inconel X-750 Over Other Wear-Resistant Alloys?

  1. Superior Corrosion-Wear Synergy: Unlike conventional wear-resistant steels, X-750 maintains excellent corrosion resistance in aggressive environments, preventing "corrosion-assisted wear" failure

  2. High-Temperature Stability: Retains wear resistance and mechanical properties at temperatures where standard wear materials soften and fail

  3. Long-Term Cost Efficiency: Extended service life (5-10x longer than stainless steel) reduces maintenance frequency and downtime costs

  4. Versatile Performance: Suitable for both dry and lubricated wear applications, as well as static and dynamic sealing scenarios

DINGSCO Complete Production Chain:

SMELTING → FORGING → HEAT TREATMENT → MACHINING → HOT EXTRUSION

Ni-Cr Alloy Wear-Resistant Ring X-750/N07750 High Temperature Superalloy 0



①Foundational Assurance in Smelting and Forging:

VIM furnaces ensure alloy purity; ESR furnaces further optimize internal structure. Forging yields diverse billets, laying a defect-free foundation for downstream processing and controlling material properties at the source.

②Precision Control in Intermediate Processing:

Heat treatment is customized for alloys. CNC machining enables high-precision forming, yielding semi-finished parts to ensure pre-extrusion billets meet forming specs.

③Synergistic Value of Hot Extrusion with Full Process:

The new hot extrusion press is part of an integrated system: High-purity alloys (VIM/ESR), dense forging microstructures, and heat-treated performance collectively enable stable extrusion of hard-to-form alloys. Produced complex components: seamless pipes, profiles; material utilization up 15-20%. Full-process efficiency cuts standard model lead times to 5-10 days.

Ni-Cr Alloy Wear-Resistant Ring X-750/N07750 High Temperature Superalloy 1



④Quality and Delivery Assurance:

Every batch comes with EN 10204 Type 3.1 certification, inspected by our internal QC team. We support third-party audits (BV, SGS, etc.), and offer custom manufacturing per drawings with sample testing available.

Ni-Cr Alloy Wear-Resistant Ring X-750/N07750 High Temperature Superalloy 2
