Monel 400 Forging Ring – NACE MR0175 Compliant for Sour Gas Wellhead and Downhole Equipment

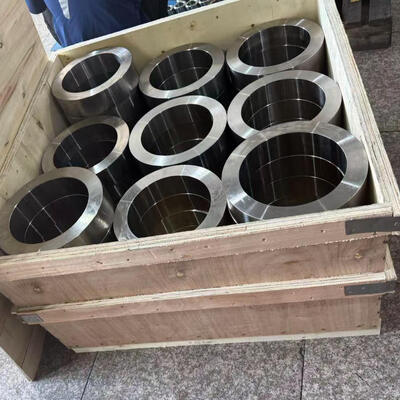

Purpose-engineered for the most aggressive oil and gas extraction environments, this Monel 400 (UNS N04400) seamless forged ring delivers certified compliance with NACE MR0175 / ISO 15156 for sour service applications. Manufactured to ASTM B564 with full material traceability, this nickel-copper alloy forging provides exceptional resistance to hydrogen sulfide (H₂S) stress corrosion cracking, chloride-induced pitting, and high-pressure sour gas attack in wellhead, downhole, and subsea production systems.

Sour Gas Service Certification & Compliance

NACE MR0175 / ISO 15156 establishes the global benchmark for metallic materials exposed to H₂S-containing environments in oil and gas production. Monel 400 is one of the select alloys approved for unrestricted use in sour service under this standard, offering intrinsic immunity to sulfide stress cracking (SSC) and hydrogen-induced cracking (HIC) without requiring post-weld heat treatment or additional protective coatings.

• Full NACE MR0175 / ISO 15156 Compliance: Certified for all sour service exposure levels, including NACE Level VII (highest severity H₂S partial pressure)
• Sulfide Stress Cracking (SSC) Immunity: The FCC crystal structure and nickel-copper chemistry provide inherent resistance to hydrogen embrittlement, eliminating the SSC risk prevalent in carbon and low-alloy steels
• Hardness Controlled: Supplied in annealed condition with hardness ≤ HRC 35, meeting NACE MR0175 hardness requirements for sour service components
• No Environmental Cracking Threshold: Unlike duplex stainless steels, Monel 400 shows no threshold H₂S partial pressure or temperature limit for environmental cracking in production environments

Material Composition & Corrosion Resistance Mechanism

Monel 400 (UNS N04400 / W.Nr. 2.4360) combines high nickel content with significant copper to create a corrosion-resistant alloy uniquely suited for the mixed corrosive challenges of sour oil and gas production:

Mechanical Properties – ASTM B564 Compliant

Seamless Forging Manufacturing Process

1. Certified Raw Material: High-purity Monel 400 billets produced via Vacuum Induction Melting (VIM), with full chemical certification per heat lot against UNS N04400 and NACE MR0175 compositional requirements.
2. Controlled Forging: Billets uniformly heated to 1100–1200°C and processed through upsetting, piercing, and precision ring rolling. The circumferential grain flow orientation maximizes hoop strength for wellhead hanger and mandrel applications.
3. Solution Annealing: Forged rings undergo solution annealing at 870–980°C with controlled cooling to achieve the specified hardness range (≤ HRC 35) and restore maximum corrosion resistance for sour service.
4. Precision Machining: CNC machined to customer-specified dimensions for RTJ (Ring Type Joint) grooves, API flange profiles, and downhole tool sealing surfaces with tolerances down to ±0.025 mm.
5. Multi-Stage Inspection: 100% Ultrasonic Testing (UT) per ASTM A388/A578, Liquid Penetrant Testing (LPT) per ASTM E165, PMI (Positive Material Identification) verification, and mechanical testing on integrally forged test rings from each heat.

Oil & Gas Applications

• Wellhead Casing Hangers: Forged ring blanks machined into API 6A casing and tubing hangers for sour gas wells, where Monel 400 provides permanent SSC immunity in H₂S partial pressures exceeding 10 bar (150 psi).
• Downhole Completion Tools: Forged rings for packer mandrels, seal bore extensions, and polished bore receptacles (PBR) in high-H₂S gas wells, eliminating the need for corrosion inhibitor injection at the metal surface.
• Subsea Christmas Tree Components: Ring gaskets and seal carriers for subsea Xmas tree connectors and flowline hubs, combining sour gas resistance with seawater corrosion protection in a single material solution.
• Subsurface Safety Valve (SSSV) Components: Forged ring preforms for flapper valve seats and control line seal rings in H₂S-charged reservoirs, where galling resistance ensures reliable emergency shut-in actuation.
• HPHT Sour Gas Manifold Rings: Large-diameter forged rings for production manifold block connectors operating at pressures exceeding 15,000 psi with mixed H₂S/CO₂/brine production fluids.
• Gas Injection Well Components: Forged ring blanks for acid gas (H₂S) re-injection wellhead adapters and isolation seals, leveraging Monel 400’s complete immunity to elemental sulfur attack at elevated temperatures.

Quality Assurance & Documentation

Each Monel 400 sour service forging ring is delivered with a comprehensive documentation package supporting NACE MR0175 compliance verification:

• EN 10204 Type 3.1 Material Test Certificate with full heat number traceability
• Chemical analysis report (OES) per heat lot confirming UNS N04400 compliance
• Mechanical test results: tensile, yield, elongation, reduction of area, hardness
• NACE MR0175 / ISO 15156 compliance statement with alloy designation reference (Table A.30)
• Hardness survey (Brinell and Rockwell C) per ASTM E18/E10 across multiple locations
• NDT reports: 100% UT per ASTM A388/A578, LPT per ASTM E165

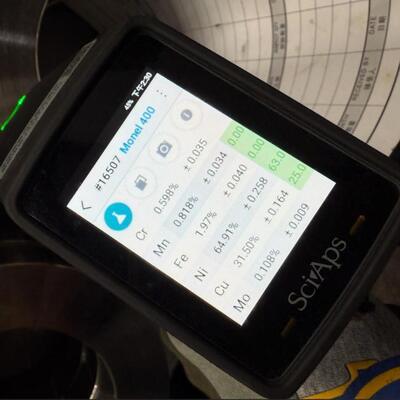

• PMI (Positive Material Identification) report using XRF or OES handheld analyzer
• Third-party inspection by Bureau Veritas, SGS, or DNV available upon request

Material Selection Rationale – Monel 400 vs. Alternatives in Sour Service

Monel 400 forged rings provide the optimal balance of sour gas immunity, seawater corrosion resistance, and cost-effectiveness for wellhead and downhole tooling where 316L is inadequate and Inconel 718 represents unnecessary cost over-engineering.

DINGSCO – Hunan Dinghan New Material Technology Co., Ltd. is a specialized manufacturer of nickel-based corrosion-resistant and high-temperature alloy products serving the global oil and gas industry. Our integrated production chain from VIM/ESR melting through forging, heat treatment, CNC machining, and hot extrusion ensures quality control at every stage, delivering NACE-compliant components to major E&P operators and service companies worldwide.
