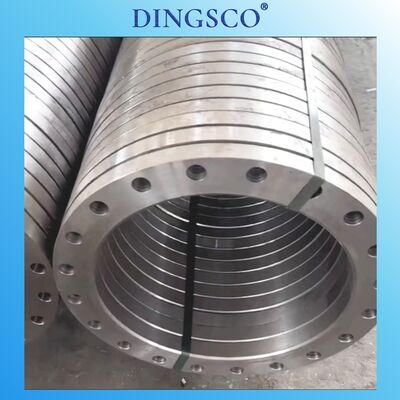

Inconel 625 Nickel Alloy Flanges with High-Temperature and Corrosion Resistance ASTM B564 UNS N06625

Inconel 625 Nickel Alloy Flanges with High-Temperature and Corrosion Resistance ASTM B564 UNS N06625
Inconel 625 Nickel Alloy Flanges with High-Temperature and Corrosion Resistance ASTM B564 UNS N06625

Large Image :  Inconel 625 Nickel Alloy Flanges with High-Temperature and Corrosion Resistance ASTM B564 UNS N06625

Product Details:
Place of Origin: China
Brand Name: DINGSCO
Certification: ISO 9001：2015, PED 2014/68 EU, API 6A, API-20B, TSG, NORSOK
Model Number: According to customers' requests
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: According to customers' requests
Delivery Time: (Sample order) 7 days
Payment Terms: T/T
Supply Ability: Negotiable
Contact Now Chat Now

Inconel 625 Nickel Alloy Flanges with High-Temperature and Corrosion Resistance ASTM B564 UNS N06625

Description
Features: High Corrosion Resistance, High Temperature Resistance, Good Mechanical Properties, Excellent Weldability Product Name: Nickel-based Alloy Flanges ASTM B564 Inconel 625 UNS N06625 Annealed Forging Flange
Material: Nickel-based Alloy Grade: INCONEL,INCOLOY,HASTELLOY,MONEL,Duplex
Dimentions: As Per Your Demands Application: Aerospace&Defense,Thermal Processing,Marine,etc
Flange Type: WNRF, SORF, BLRF, SWRF, Lap Joint, Threaded, Orifice, Spectacle Blind Face Type: Raised Face, Flat Face, Ring Type Joint
Highlight:

Inconel 625 forged flanges

,

ASTM B564 nickel alloy flanges

,

high-temperature corrosion-resistant flanges

Product Overview
Inconel 625 is a solid-solution strengthened nickel-based superalloy reinforced primarily with molybdenum and niobium, offering exceptional stability in extreme corrosive environments and high-temperature conditions. Inconel 625 forged flanges are manufactured in strict compliance with ASTM B564 / ASME SB564 standards, with material designation UNS N06625 (German standard 2.4856). They are the preferred connection components for critical piping systems in the chemical, marine, aerospace, and nuclear industries.
Thanks to its unique chemical composition design, Inconel 625 flanges achieve high strength without requiring post-weld heat treatment, while maintaining excellent workability and weldability. They can reliably serve in applications ranging from cryogenic temperatures up to 980°C (1800°F).
Applicable Standards & Specifications
Item Specification
Material Standard ASTM B564 / ASME SB564 / UNS N06625 / DIN 2.4856
Dimension Standards ANSI B16.5, ANSI B16.47 Series A&B, MSS SP44, API-605, EN 1092-1, DIN, JIS, etc.
Pressure Ratings 150#, 300#, 600#, 900#, 1500#, 2500# (ANSI); PN6-PN64 (DIN/EN)
Flange Types Weld Neck, Slip-On, Blind, Socket Weld, Threaded, Lap Joint
Facing Types Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ)
Size Range 1/2" to 36" (custom larger sizes available upon request)
Chemical Composition
Inconel 625 is based on a nickel matrix, with precise proportions of various alloying elements to achieve superior comprehensive performance:
Element Content (%) Function
Nickel (Ni) ≥ 58.0 Base element; provides austenitic stability and fundamental corrosion resistance
Chromium (Cr) 20.0 ~ 23.0 Forms a dense oxide layer; enhances oxidation and corrosion resistance
Molybdenum (Mo) 8.0 ~ 10.0 Improves resistance in reducing media; resists chloride-induced pitting
Niobium (Nb) 3.15 ~ 4.15 Key strengthening element; synergizes with molybdenum to provide high strength without heat treatment
Iron (Fe) ≤5.0 Controlled to ensure structural stability
Carbon (C) ≤0.10 Strictly controlled to prevent carbide precipitation affecting corrosion resistance
Cobalt (Co) ≤1.0 Controlled impurity element
Aluminum (Al) / Titanium (Ti) ≤0.40 Trace elements for microstructure stabilization
Core Mechanism: The addition of niobium works synergistically with molybdenum to strengthen the alloy matrix through solid-solution strengthening, enabling Inconel 625 to achieve high strength without requiring precipitation hardening heat treatments.
Mechanical Properties
Inconel 625 forged flanges exhibit excellent strength-toughness balance in the solution annealed condition:
Property Room Temperature At 650°C (1200°F)
Tensile Strength (Rm) ≥827 MPa (120 ksi) ≥760 MPa (110 ksi)
Yield Strength (Rp0.2) ≥414 MPa (60 ksi) ≥290 MPa (42 ksi)
Elongation (A) ≥30% ≥55%
Hardness ≤220 HB --
Temperature Adaptability: Maintains good tensile and fatigue properties from cryogenic -196°C (-320°F) up to 980°C (1800°F). Non-magnetic (permeability ≤1.0006).
Key Performance Advantages
Exceptional Corrosion Resistance
  • Broad-spectrum Resistance: Excellent resistance to sulfuric, hydrochloric, nitric, and phosphoric acids, as well as mixed acid environments
  • Localized Corrosion Resistance: Particularly resistant to chloride-induced pitting and crevice corrosion; suitable for seawater, brine, and high-chloride environments
  • Stress Corrosion Cracking Resistance: Certified to NACE MR-01-75; resistant to sour gas environments containing hydrogen sulfide (H₂S)
  • Oxidation Resistance: Maintains good oxidation resistance up to 982°C (1800°F)
Superior High-Temperature Strength
  • Melting Range: 1290-1350°C (2350-2460°F); maintains structural integrity up to 1093°C (2000°F)
  • Creep Resistance: Face-centered cubic crystal structure provides excellent creep and fatigue resistance at elevated temperatures
  • Thermal Stability: Exhibits only minimal age hardening effects after prolonged service at 550-700°C (1020-1290°F)
Excellent Workability and Weldability
  • Superior Weldability: ERNiCrMo-3 filler metal recommended; maintains stable performance without post-weld heat treatment
  • Cold & Hot Workability: Moderate hardness after solution treatment (≤220 HB) facilitates machining; hot working recommended above 1200°C (2190°F)
  • Formability: Elongation up to 50%, combining high strength with excellent plasticity
Heat Treatment
Inconel 625 flanges can be supplied in different heat treatment conditions based on service requirements:
Treatment Temperature Range Cooling Method Application
Solution Annealing 1093-1204°C (2000-2200°F) Water quench or air cool Stress relief, enhanced corrosion resistance; standard delivery condition
Annealing 927-1038°C (1700-1900°F) Air cool or water quench Improves ductility after cold working
Stress Relief 900°C (1650°F) Air cool Relieves residual stresses from welding or cold forming
Inconel 625 Nickel Alloy Flanges with High-Temperature and Corrosion Resistance ASTM B564 UNS N06625 0
