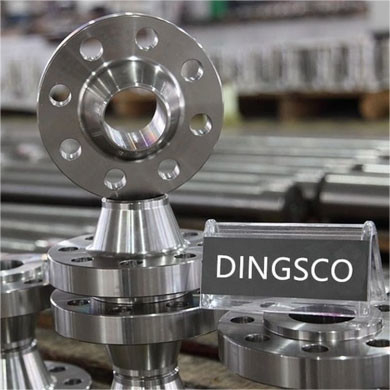

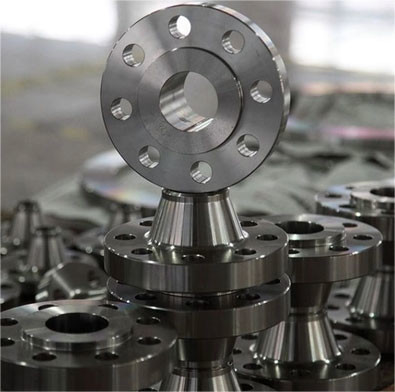

Tailor Made Weld Neck Flanges Incoloy Inconel Pipe Fittings For Oil / Gas Marine Industry

Tailor-made Weld Neck Flanges Inconel Incoloy Pipe Fittings Oil and Gas Marine Industry

Weld neck flanges are commonly used in the oil and gas industry due to their high strength and reliability in high-pressure environments. Here's a detailed overview regarding tailor-made weld neck flanges suitable for applications in the oil and gas sector:

Detailed Description of Tailor-Made Weld Neck Flanges

1. Design and Structure:

• Neck: The defining feature of weld neck flanges is the long tapered neck, which extends from the flange body. This neck provides stability and helps distribute stress more evenly along the pipe, reducing localized stress concentrations.
• Hub: The flange has a hub that gradually tapers towards the pipe, contributing to the efficient distribution of mechanical stress.
• Bore: The bore diameter is typically equal to the diameter of the connecting pipe, ensuring a smooth flow of fluids and minimizing turbulence at the joint.

2. Types:

• Regular Weld Neck Flanges: These are used in standard applications where strength and reliability are necessary.
• Long Weld Neck Flanges: These are used when additional reinforcement is needed, such as in pressure vessels and high-temperature services.

3. Materials:

• Standard Materials: Commonly, these flanges are made from carbon steel, stainless steel, and alloy steels, ensuring high strength and corrosion resistance.
• Specialty Materials: Depending on the project requirements, weld neck flanges can be manufactured from special alloys (e.g., Inconel, Monel, Titanium) to enhance performance in extremely corrosive environments.

4. Applications in Oil and Gas:

• Pipeline Infrastructure: Weld neck flanges are used extensively to connect pipes in offshore and onshore oil and gas pipelines, ensuring a strong and leak-proof connection.
• Process Piping: Within refineries and petrochemical plants, weld neck flanges integrate into the piping systems carrying crude oil, natural gas, and various petroleum products.
• Pressure Vessels: Due to the flange's ability to handle high pressure, they are used in attaching pressure vessels and reactors within the processing facilities.
• Subsea Applications: In underwater applications, the robust design of weld neck flanges helps withstand high external pressure and avoid leaks.

5. Standards and Specifications:

• API 6A and ASME B16.5: These standards govern the manufacture and dimensions of weld neck flanges for pressure and temperature service conditions in the oil and gas industry.
• NACE MR0175/ISO15156: Defines the material requirements for resistance to sulfide stress cracking, ensuring suitability for sour service applications.

6. Customization:

• Dimensions: Tailor-made flanges can be manufactured to meet specific project requirements, adjusting the neck length, bore diameter, and overall dimensions.
• Coatings: Custom coatings (e.g., FBE, PTFE) can be applied to protect against harsh environmental conditions and corrosive media.
• Special Features: Custom flanges can include additional features such as tapped holes, special sealing surfaces, or unique patterns of bolt holes to accommodate specific connection requirements.

Importance in Oil and Gas Industry

• Reliability: Weld neck flanges are known for their high fatigue strength and ability to maintain integrity under fluctuating stresses and temperatures, which is crucial in the oil and gas industry.
• Safety: Properly installed weld neck flanges prevent leaks and ensure the safe transportation of hazardous and volatile substances.
• Durability: The durability of these flanges contributes to reduced maintenance costs and longer service life in critical applications, making them a preferred choice in the industry.

By understanding the specific requirements and environmental conditions of the oil and gas application, tailored weld neck flanges provide customized solutions that enhance operational efficiency, safety, and longevity of the piping systems.
