Inconel 600 Forged Valve Ball | High Temperature & Corrosion Resistant Nickel Alloy Forging

Inconel 600 Forged Valve Ball | High Temperature & Corrosion Resistant Nickel Alloy Forging
Inconel 600 Forged Valve Ball | High Temperature & Corrosion Resistant Nickel Alloy Forging

Large Image :  Inconel 600 Forged Valve Ball | High Temperature & Corrosion Resistant Nickel Alloy Forging

Product Details:
Place of Origin: China
Brand Name: DINGSCO
Certification: ISO 9001:2015,PED 2014/68/EU,API 6A,API-20B,TSG,NORSOK
Model Number: According to customers requirements
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: According to Customers' Requests
Delivery Time: (Sample Order) 7 days
Payment Terms: T/T
Supply Ability: Negotiable
Contact Now Chat Now

Inconel 600 Forged Valve Ball | High Temperature & Corrosion Resistant Nickel Alloy Forging

Description
Product Name: Inconel 600 Forged Valve Ball | Nickel Alloy Forging Manufacturer Grade: Inconel 600
UNS: UNS N06600 Density: 8.47 Mg/m³
Surface Finish: Ra ≤ 1.6 μm Service Temperature: -200°C To 1100°C
Highlight:

Inconel 600 forged valve ball

,

Nickel alloy valve ball forging

,

Inconel 600 nickel alloy valve

Inconel 600 Forged Valve Ball | Nickel Alloy Forging Manufacturer

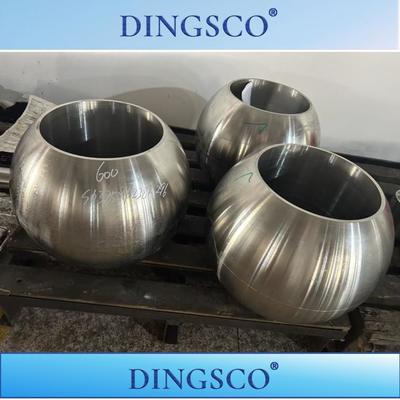

DINGSCO specializes in manufacturing high-quality Inconel 600 forged components for demanding industrial environments. The product shown is a precision-machined Inconel 600 forged valve ball, designed for excellent strength, oxidation resistance, and corrosion resistance under high temperature and pressure conditions.
Inconel 600 (UNS N06600) is a nickel-chromium alloy known for its outstanding resistance to heat, oxidation, and chloride-ion stress corrosion cracking. It maintains mechanical strength and stability from cryogenic temperatures up to 1100 °C, making it one of the most versatile nickel alloys for industrial applications.
These forged valve balls are produced through advanced hot forging and precision machining processes to ensure uniform grain structure, smooth surface finish, and excellent dimensional accuracy.
Key Material Properties
Property Typical Value
Nickel (Ni) ≥ 72%
Chromium (Cr) 14-17%
Iron (Fe) 6-10%
Tensile Strength ≥ 550 MPa
Yield Strength ≥ 240 MPa
Elongation ≥ 30%
Hardness 150-200 HB
Density 8.47 g/cm³
Service Temperature -200°C to 1100°C
Main Applications
Inconel 600 forged parts are widely used in industries that require durability and performance in extreme environments:
  • Petrochemical Equipment - Heat exchangers, reactors, evaporators, and furnace tubes
  • Nuclear Power Systems - Reactor heat exchanger components and sealing elements
  • Aerospace Industry - Combustion liners, connectors, and engine structural parts
  • Valve Manufacturing - Forged valve balls, valve seats, and sealing rings
  • Heat Treatment Equipment - Retorts, trays, and support fixtures for high-temperature furnaces
Advantages of Inconel 600 Forged Valve Ball
  • Excellent oxidation and carburization resistance
  • High strength and toughness across a wide temperature range
  • Superior resistance to chloride and ammonia corrosion
  • Dense and uniform forging structure without porosity or inclusions
  • Available in customized dimensions, surface finishes, and heat-treated conditions
Available Specifications
Specification Range / Standard
Size Range Ø100 mm - Ø1000 mm
Surface Finish Ra ≤ 1.6 μm
Condition Forged / Heat Treated / Machined
Standard ASTM B166 / ASTM B564 / UNS N06600
Certification EN 10204 3.1 / 3.2 available upon request
Why Choose DINGSCO ®
As a professional nickel alloy forging manufacturer, DINGSCO provides full technical support from material selection to final inspection. With advanced forging equipment, CNC machining centers, and strict quality control, our Inconel 600 forged valve balls deliver long-term reliability in high-stress industrial applications.
