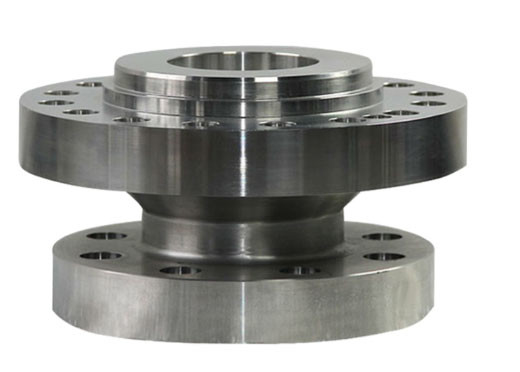

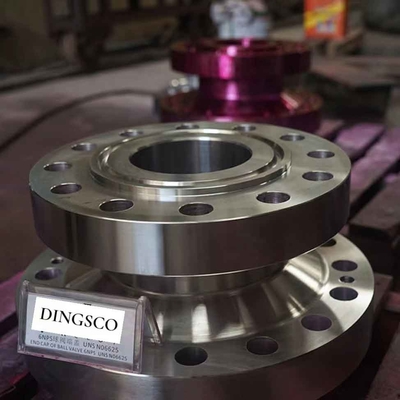

ISO9001 Nickel Alloy Valve Parts End Body Flange Connection Bonnet End Cap Of Ball Valve Seal

ISO9001 Nickel Alloy Valve Parts End Body Flange Connection Bonnet End Cap Of Ball Valve Seal
ISO9001 Nickel Alloy Valve Parts End Body Flange Connection Bonnet End Cap Of Ball Valve Seal
ISO9001 Nickel Alloy Valve Parts End Body Flange Connection Bonnet End Cap Of Ball Valve Seal ISO9001 Nickel Alloy Valve Parts End Body Flange Connection Bonnet End Cap Of Ball Valve Seal ISO9001 Nickel Alloy Valve Parts End Body Flange Connection Bonnet End Cap Of Ball Valve Seal

Large Image :  ISO9001 Nickel Alloy Valve Parts End Body Flange Connection Bonnet End Cap Of Ball Valve Seal

Product Details:
Place of Origin: China
Brand Name: DINGSCO
Certification: ISO 9001：2015, PED 2014/68 EU, API 6A, API-20B, TSG, NORSOK
Model Number: According to customers' requests
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: According to customers' requests
Delivery Time: (Sample order) 7 days
Payment Terms: T/T
Supply Ability: Negotiable
Contact Now

ISO9001 Nickel Alloy Valve Parts End Body Flange Connection Bonnet End Cap Of Ball Valve Seal

Description
Features: Connected Through Flange, Suitable For Medium And Large Ball Valves Product Name: Flange Connection Bonnet
Spec.: 6 NPS Executive Standard: GB/T 7934-2017
Application: Secure The Valve Core And Seal The Fluid Surface Condition: Bright
Highlight:

ISO9001 Nickel Alloy Valve Parts

,

Valve Parts Flange Connection Bonnet

Valve Part End Body Flange Connection Bonnet End Cap Of Ball Valve Seal For Secure The Valve Core





Flange Connection Bonnet:



The advantage of flange-connected bonnets over threaded bonnets is that the tightening force can be distributed to all bolts. Therefore flanged bonnets can be used for valves of any size and pressure class.
However, as the size of the valve increases and the pressure increases, the volume and weight of the valve of this structure become larger and larger. When the valve operating temperature is higher than 350℃ (600℉), the load-bearing capacity of the bolts will be greatly reduced due to creep relaxation.
In demanding applications, the flange connection can also be sealed and welded.





GRADE UNS DENSITY DIN GB
INCONEL 625 N06625 8.44g/cm³ W.Nr.2.4856 NS3306





CHEMICAL COMPOSITION:



Ni Cr C Fe Mn Si S
58min 20.0 - 23.0 0.1max 2max 0.5max 0.5max 0.015max

P

 Al Ti Mo Nb
0.015max 0.4max 0.4max 8.0 - 10.0 3.15 - 4.15





SPECIFICATION:



FORM ASTM
Rod and bar B 446
Plate, sheet and strip B 443, B 906
Seamless pipe and tube B 444, B 829
Welded pipe B 705, B 775
Welded tube B 704, B 751
Fitting B 366
Billet and bar for reforging B 472
Forging B 564








ISO9001 Nickel Alloy Valve Parts End Body Flange Connection Bonnet End Cap Of Ball Valve Seal 0
