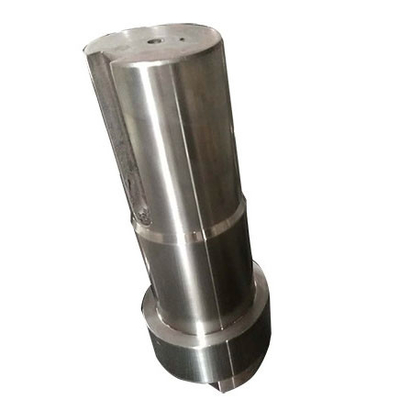

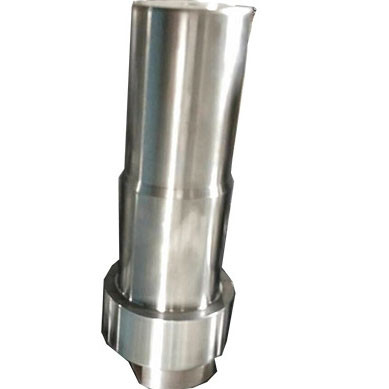

Nickle Alloy Metal Valve Stems UNS S32760 Super Duplex F55 1.4501 Valve Disc Connect Actuator

Nickle Alloy Metal Valve Stems UNS S32760 Super Duplex F55 1.4501 Valve Disc Connect Actuator
Nickle Alloy Metal Valve Stems UNS S32760 Super Duplex F55 1.4501 Valve Disc Connect Actuator Nickle Alloy Metal Valve Stems UNS S32760 Super Duplex F55 1.4501 Valve Disc Connect Actuator

Large Image :  Nickle Alloy Metal Valve Stems UNS S32760 Super Duplex F55 1.4501 Valve Disc Connect Actuator

Product Details:
Place of Origin: China
Brand Name: DINGSCO
Certification: ISO 9001:2015,PED 2014/68/EU,API 6A,API-20B,TSG,NORSOK
Model Number: According to customers requirements
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: According to Customers' Requests
Delivery Time: (Sample Order) 7 days
Payment Terms: T/T
Supply Ability: Negotiable
Contact Now

Nickle Alloy Metal Valve Stems UNS S32760 Super Duplex F55 1.4501 Valve Disc Connect Actuator

Description
Product Name: Nickle Alloy Flat Welding Flange Grade: Super Dupex F55
Density: 7.8 G/cm3 Specific Heat: 500J/kg.℃
Hardness (Max): 290 HB Elongation: 25 %
Mean Coefficient Of Thermal Expansion At 20 - 100°C: 13 X 10-6 K -1 Impact: 100 J
Electrical Resistivity At 20°C: 0.8Ω .mm2 .m-1 Thermal Conductivity At 20°C: 15 W.m-1.K-1
Ultimate Tensile Strength: 730 – 930 MPa Modulus Of Elasticity At 20°: 200GPa
0.2% Proof Strength: 530 MPa
Highlight:

Nickle Alloy Metal Valve Stems

,

Metal Valve Stems UNS S32760

Nickle Alloy Stem UNS S32760 Super Duplex F55 1.4501 Valve Disc Connect Actuator





Nickle Alloy Valve Stem is an important component of the valve, used for transmission. It connects to the actuator or handwheel at the top and directly drives the valve core to move or rotate at the bottom, thereby achieving the function of opening, closing, or regulating the valve.





Product Features:



The valve stem is not only a moving part and a load-bearing component during the valve opening and closing process, but also a sealing element. It is subjected to the impact and corrosion of the medium, as well as friction with the packing. Therefore, when selecting the valve stem material, it is necessary to ensure that it has sufficient strength, good impact toughness, anti-scoring properties, and corrosion resistance at the specified temperature. The valve stem is a wearing part, and attention should also be paid to the material’s machinability and heat treatment properties when selecting it.





UNS S32760 / 1.4501 / F55:


Material to UNS S32760 (and the other specifications listed below) is described as a super duplex stainless steel with a microstructure of 50:50 austenite and ferrite. The steel combines high mechanical strength (typically up to 600 MPa yield strength) and good ductility with outstanding corrosion resistance to marine environments and a wide, diverse range of oil & gas production environments. The alloy is supplied with a PREN (Pitting Resistance Equivalent) at >= 40.0 which guarantees high
resistance to pitting corrosion. In addition, the steel offers high resistance to crevice corrosion and stress corrosion cracking. Ambient and sub-zero (down to minus 50 °C) notch ductility is good. These attributes mean that this super duplex steel can be used successfully as an alternative to 300 series stainless steel (such as type 316), standard 22% Cr duplex steel and precipitation hardening stainless steels. Where appropriate the alloy can be considered in lieu of more costly Grade 5 titanium or
nickel based alloys.

Availability:

Bar, forgings, sheet, plate, pipe, tube, closed die forgings, flanges and welding consumables.


Related material specifications:



  • UNS S32760 in various ASTM product form specifications
  • EN 10088-3 1.4501 (Grade X2CrNiMoCuWN25-7-4)
  • NORSOK MDS D51 to D55, D57 & D58
  • ASTM A182 F55
  • NACE MR01-75 (latest revision) / ISO 15156




Machinability / Welding:

The machining and welding of this grade of super austenitic stainless steel presents no particular problems. Guidance notes are available upon request.


Typical Applications:

Pumps, valves, chokes, Xmas trees, pipework / flanges, bolting, connectors & manifolds. In oil and gas industry,equipment in defence, chemical and marine industries.

Chemical Composition:



Element C Mn Si S P Cr Ni Mo Cu N
Minimum(%) - - - - - 24 6 3 0.5 0.20
Max(%) 0.03 1 1 0.015 0.035 26 8 4 1 0.30





Reference Standards:

General
  • Norsok M-650 Ed.4 qualified manufacturers
  • PED 2014/68/EU Annex I section 4.3
  • AD2000 W0 (W2/W10)
  • NACE MR0175/ ISO 15156-3 and NACE MR0103/ISO 17945
Plate, sheet and coil

  • ASTM A240, EN 10028-7, EN 10088-2, EN 10088-4, Norsok M-630 MDS D55
Bar and forging

  • ASTM A276, ASTM A479, ASTM A182, EN 10088-3, Norsok M-630 MDS D54/D57
Other products

  • As per applicable ASTM and/or EN standards and Norsok M-630 MDS



Applications:

Process industry components in nitric acid, dioxide, polypropylene & PVC production, caustic evaporators

Equipment handling organic & fatty acids

Marine industry and shipbuilding propellers, shafts, rudders, shaft seals, pumps, bolts, fasteners, valves, instrumentation

Oil and chemical tankers

Oil & Gas industry pumps, valves, pipe, vessels, wellhead equipment, subsea equipment

Pollution control systems, fans and pumps, wet scrubbers, incinerators, flue gas desulphurisation (FGD)

Pulp & paper industry components such as black liquor heater tubes, digester blow valves, rotary feed valves, I.D.fans, brownstock washers, precipitators, bleaching components

Food Industry applications including sugar cane centrifuges, corn and vegetable processing plant

Agrochemicals production such as fertilisers (based on wet phosphoric acid)

Sewage treatment, seawater cooling, desalination plants






















Processing Flow Chart:



Nickle Alloy Metal Valve Stems UNS S32760 Super Duplex F55 1.4501 Valve Disc Connect Actuator 0





Nickle Alloy Metal Valve Stems UNS S32760 Super Duplex F55 1.4501 Valve Disc Connect Actuator 1
