Monel 400 (UNS N04400) WNRF Weld Neck Raised Face Flange: Nickel-Copper Forged Flange for Seawater, Hydrofluoric Acid and Marine Piping Service

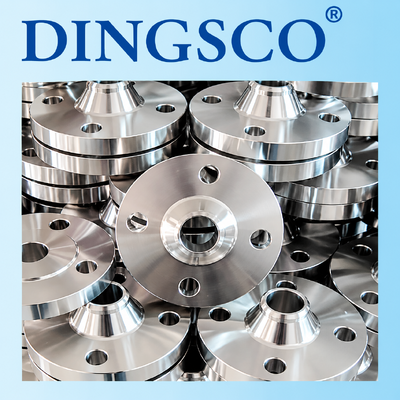

Monel 400 (UNS N04400) WNRF Weld Neck Raised Face Flange

UNS N04400 Monel 400 WNRF flange is a forged nickel-copper alloy flange with tapered weld neck and raised face. It delivers reliable strength and excellent corrosion resistance in seawater, hydrofluoric acid, dilute reducing acids and alkaline media, with good toughness even at low temperature. The tapered hub design smoothly transfers stress, suitable for high pressure, thermal cycling and fatigue piping systems. It is particularly suitable for marine pipelines, HF acid equipment, offshore seawater piping and chemical process flanged connections.

Key Features and Advantages

• Outstanding resistance to seawater erosion, hydrofluoric acid and non-oxidizing acid corrosion.

• Excellent low-temperature toughness, no brittle transition at cryogenic condition.

• Tapered neck structure, uniform stress distribution, good for cyclic load and vibration service.

• Good weldability, no post-weld heat treatment required.

• Forged dense grain structure, stable sealing performance under high pressure.

Typical Applications

• Offshore platform seawater pipeline flanges.

• Hydrofluoric acid processing equipment and acid piping connections.

• Marine engineering, ship piping and desalination systems.

• Chemical plants for dilute acid and alkali medium pipelines.

• Oil & gas brine service, cooling water and saltwater piping systems.

• Valve, pump and heat exchanger flanged joints in corrosive piping.

Technical Specifications

• Product Name: Monel 400 WNRF Weld Neck Raised Face Flange

• Material Designation: UNS N04400

• Werkstoff Number: 2.4360

• Alloy Family: Nickel-Copper Alloy

• Product Form: Forged Weld Neck Raised Face Flange (WNRF)

• Reference Standard: ASTM B564 (forging), ASME B16.5 / ASME B16.47, subject to confirmation of product applicability and delivery requirements

• Size & Pressure Class: custom available

• Surface Condition: As agreed in the purchase specification

• Inspection Documents: Material test certificates and inspection reports, as agreed

Quality Assurance

Products can be supplied according to agreed specifications, with chemical composition verification, mechanical testing, dimensional inspection, surface examination, and material traceability where required. Material certificates and additional inspection documentation are available according to the purchase order and applicable product requirements.

Contact our sales team today for a competitive quote, technical datasheet, or to discuss your custom forging requirements.
