As a high-performance nickel-based superalloy barstock, the Alloy 625 Round Bar ASTM B446 Bright Solid Bar is specifically designed for tough service environments that demand superior corrosion resistance, high mechanical strength, and reliable performance. The following is a comprehensive technical overview covering its chemical makeup, manufacturing criteria, key characteristics, production processes, and practical applications:
1. Material Composition & Classification
Alloy 625 (designated as UNS N06625 and W.Nr. 2.4856) is an austenitic alloy composed primarily of nickel, chromium, molybdenum, and niobium. Its key chemical components are as follows:
- Nickel (Ni): ≥58% (serves as the base material).
- Chromium (Cr): 20–23%, which enhances the alloy’s resistance to oxidation and general corrosion.
- Molybdenum (Mo): 8–10% and niobium (Nb + Ta): 3.15–4.15%, which work together to reinforce the alloy matrix and boost its resistance to pitting, crevice corrosion, and stress-corrosion cracking (SCC).
- Minor components: Iron (Fe ≤5%), manganese (Mn ≤0.5%), silicon (Si ≤0.5%), carbon (C ≤0.1%), along with small quantities of aluminum (Al), titanium (Ti), and cobalt (Co).
Classification: This alloy is a precipitation-hardened nickel-based superalloy, commonly sold under the brand name Inconel 625 (a registered trademark).
2. Manufacturing Standard: ASTM B446
This round bar is produced in strict accordance with ASTM B446, a rigorous standard established by the American Society for Testing and Materials (ASTM) that governs the following aspects:
These mechanical values are applicable to the alloy in either annealed or solution-annealed condition.
Heat treatment options specified by ASTM B446 include:
- Grade 1 (Annealed): Ideal for applications requiring general corrosion resistance in moderate-temperature settings (such as seawater and chemical processing operations).
- Grade 2 (Solution Annealed): Tailored for high-temperature applications that need resistance to creep and rupture (temperatures exceeding 1100°F / 593°C).
Quality control measures: Comprehensive testing is conducted to verify dimensional accuracy, surface quality, and compliance with chemical and mechanical specifications.
3. Form & Dimensions
- Shape: Solid cylindrical round bar with a consistent cross-sectional profile.
- Diameter range: Usually 3 mm (0.12 in) to 500 mm (20 in), with custom sizes available upon request — mangalammetal.com.
- Lengths: Standard lengths range from 1–6 meters (3–20 ft), or can be cut to specific lengths as needed.
- Tolerances: Precise dimensional control is achieved through cold working processes (e.g., cold drawing or grinding), meeting ISO H8–H11 tolerance standards.

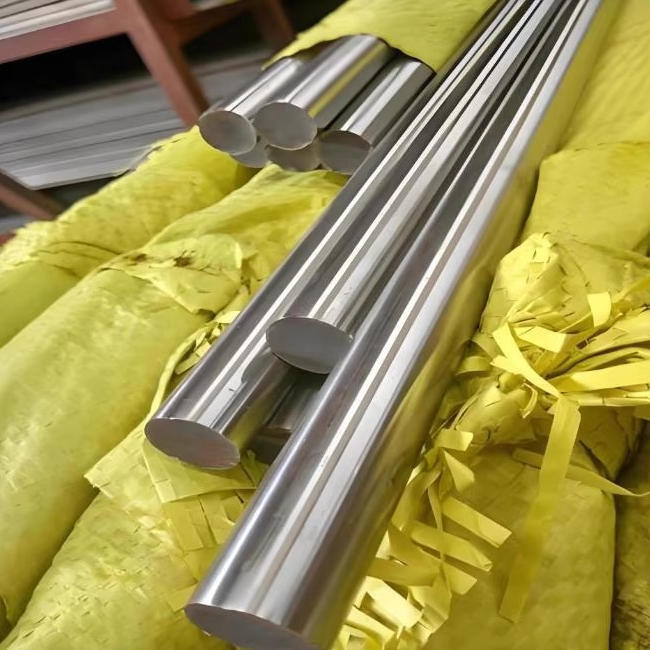

Bright Finish
The "bright solid bar" designation indicates a highly polished, smooth surface achieved through processes like cold drawing followed by polishing or grinding. This finish reduces surface flaws, improves corrosion resistance, and supports precise machining operations.
Surface condition: Free from defects such as cracks, laps, or scaling, ensuring dependable performance in critical applications.
4. Key Properties
Exceptional Corrosion Resistance
The alloy demonstrates strong resistance to general corrosion, pitting, crevice corrosion, and SCC in chloride-containing environments (e.g., seawater, brines). It is also unaffected by mineral acids, organic acids, alkaline solutions, and high-temperature gases. This corrosion resistance makes it well-suited for marine, nuclear, and chemical processing industries.
High-Temperature Performance
It maintains its strength and structural integrity from cryogenic temperatures up to 1093°C (2000°F). The alloy offers excellent oxidation resistance and creep-rupture strength at elevated temperatures, with Grade 2 solution-annealed material being particularly well-suited for applications above 593°C / 1100°F.
Mechanical Robustness
Combining high tensile and fatigue strength with good ductility (≥30% elongation), the alloy can be formed into complex shapes and welded without cracking — mangalammetal.com. Its rigid matrix (enhanced by molybdenum and niobium additions) ensures structural stability under heavy loads.
Fabrication Characteristics
- Excellent weldability (e.g., via GTAW, GMAW) with no post-weld heat treatment required for most applications.
- Can be machined effectively with appropriate tooling and cooling, especially for hardened grades.
- Density: Approximately 8.44 g/cm³ (0.305 lb/in³).
- Thermal properties: A low thermal expansion coefficient and high modulus of elasticity contribute to excellent dimensional stability.
5. Processing & Finish
Manufacturing Methods
Cast ingots are subjected to hot working processes (forging, rolling) to refine the grain structure and improve material uniformity. Subsequent cold working (drawing, grinding) reduces the diameter, enhances mechanical properties, and achieves the bright surface finish. Optional heat treatments (annealing or solution annealing) are performed to optimize performance for specific service conditions.
Bright Finish Process
Cold-drawn bars are polished or ground to eliminate surface imperfections, resulting in a mirror-like or semi-bright appearance. This finish minimizes surface roughness (e.g., Ra ≤0.8–1.6 μm), which is essential for preventing debris buildup and corrosion initiation.
6. Applications
Thanks to its balanced set of properties, Alloy 625 round bars are essential components in industries and applications that require durability in harsh conditions:
- Marine engineering: Propeller shafts, seawater piping, offshore platforms, and corrosion-resistant fasteners.
- Oil & gas: Downhole tools, subsea equipment, and high-pressure/high-temperature pipelines (capable of withstanding sour gas and H₂S).
- Chemical processing: Reactors, valves, pumps, and heat exchangers used to handle corrosive fluids or acids.
- Aerospace & power generation: Combustion chambers, exhaust systems, and turbine components exposed to extreme heat and oxidation — mangalammetal.com.
- Nuclear industry: Fuel element spacers, containment vessels, and components that require resistance to radiation and corrosive coolants.
- General engineering: High-strength fasteners, instrumentation components, and structural parts for harsh environments.
The Alloy 625 Round Bar ASTM B446 Bright Solid Bar represents a high point in nickel-based alloy engineering, providing unparalleled resistance to corrosion, oxidation, and high-temperature degradation while maintaining strong mechanical properties. Its bright finish and dimensional precision make it suitable for applications where reliability, appearance, and long-term performance are essential. Whether used in offshore rigs, chemical plants, or aerospace systems, this barstock delivers consistent value in the world’s most challenging service environments.
