Monel 400 Forged Flange - Corrosion Resistant Nickel-Copper Alloy Flange for Marine Engineering

Monel 400 Forged Flange - Corrosion Resistant Nickel-Copper Alloy Flange for Marine Engineering
Monel 400 Forged Flange - Corrosion Resistant Nickel-Copper Alloy Flange for Marine Engineering

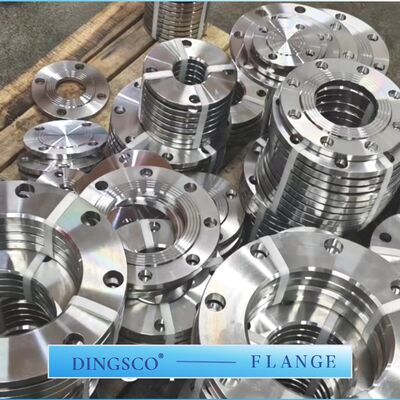

Large Image :  Monel 400 Forged Flange - Corrosion Resistant Nickel-Copper Alloy Flange for Marine Engineering

Product Details:
Place of Origin: China
Brand Name: DINGSCO
Certification: ISO 9001:2015,PED 2014/68/EU,API 6A,API-20B,TSG,NORSOK
Model Number: According to customers' requirements
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: According to customers' requests
Delivery Time: (Sample order) 7 days
Payment Terms: T/T
Supply Ability: Negotiable
Contact Now Chat Now

Monel 400 Forged Flange - Corrosion Resistant Nickel-Copper Alloy Flange for Marine Engineering

Description
Features: High Temperature&Corrosion Resistance Product Name: Monel 400 Forged Flange | ASTM B564 UNS N04400 | Nickel-Copper Alloy Corrosion-Resistant Flange
Material: Nickel Alloy Grade: Monel
Dimention: As Per Your Demands Flange Types: WNRF, SORF, BLRF, SWRF, Lap Joint, Threaded, Orifice, Spectacle Blind
Face Type: Raised Face, Flat Face, Ring Type Joint Application: Marine Engineering，Chemical Processing Equipment，Oil & Gas Industry，Energy & Desalination Systems
Highlight:

Corrosion Resistant Monel 400 Flange

,

High Temperature Resistance Nickel-Copper Alloy Flange

,

Marine Engineering Application Forged Flange

Monel 400 Forged Flange
Manufactured in accordance with ASTM B564 UNS N04400 from high-quality nickel-copper alloy billets, these forged flanges are engineered for exceptional resistance to seawater, hydrofluoric acid, and alkaline environments. As professional forging manufacturers, we produce heavy-wall and large-diameter Monel 400 flanges for demanding marine, offshore, and chemical processing systems where corrosion resistance and mechanical reliability are critical.
Material Advantages - Monel 400 Alloy
Monel 400 is a solid-solution alloy composed primarily of nickel and copper, making it highly resistant to a wide range of corrosive environments. It maintains outstanding strength, ductility, and stability under both cryogenic and elevated temperatures.
Main Characteristics:
  • Excellent corrosion resistance in marine and alkaline environments
  • High toughness and durability at both low and high temperatures
  • Resistance to stress corrosion cracking and cavitation
  • Suitable for hot forming, welding, and machining
Performance Advantages
  • Room Temperature Strength: Tensile strength approximately 30% higher than 304 stainless steel
  • Low-Temperature Toughness: Impact energy >75 J at -196°C, no brittle fracture risk; suitable for LNG storage and transportation equipment
  • High-Temperature Performance: Maximum continuous service temperature approximately 600°C in air; corrosion rate <0.026 mm/a in high-temperature steam
Production Process Flow
VIM Vacuum Induction Melting → ESR Electroslag Remelting → Forging Breakdown → Ring Rolling → Solution Heat Treatment → Machining → NDT → Surface Finishing
Material Properties
Property Typical Value
Material Monel 400 (UNS N04400)
Density 8.8 g/cm³
Tensile Strength ≥480 MPa
Yield Strength ≥170 MPa
Elongation ≥35%
Hardness 120-180 HB
Working Temperature -100°C to +550°C
Applications
Offshore & Marine Systems
Seawater pumps, condensers, and heat exchangers
Chemical & Petrochemical Plants
Alkali production, acid handling pipelines, reactor connectors
Power Generation
Condenser tubes and corrosion-resistant fittings
Desalination & Water Treatment
Corrosion-resistant equipment components
Monel 400 Chemical Composition
S C Cu Ni Si Mn Fe
0.024 0.3 34 - 0.5 2 2.5
- - 28 63 - - -
Material Comparison
Monel 400: More suitable for seawater and alkaline environments
Inconel 625: More suitable for mixed environments of high intensity and high corrosion
