Product Details:
|
| Product Name: | Alloy 926 UNS N08926 Stainless Steel Seamless Pipe | Grade: | Alloy 926/UNS N08926/1.4529 |
|---|---|---|---|
| Outer Diameter: | 0.6-1000mm Or According To Customer’s Requirement | Wall Thickness: | 0.05-20.0mm Or According To Customer’s Requirement |
| Lenght: | 3 Meters And 6 Meters Or Customer’s Requirement | Application: | Chemical Processing,Automotive Manufacturing,Electric&Telecom,Oil&Gas |
| Standard: | ASTM B677 | Quality Requirement: | Mill Test Certificate Will Be Offered With Shipment, The Third Party Inspection Is Available |
| Highlight: | UNS N08926 Stainless Steel Seamless Pipe,Alloy 926 Stainless Steel Seamless Pipe |
||

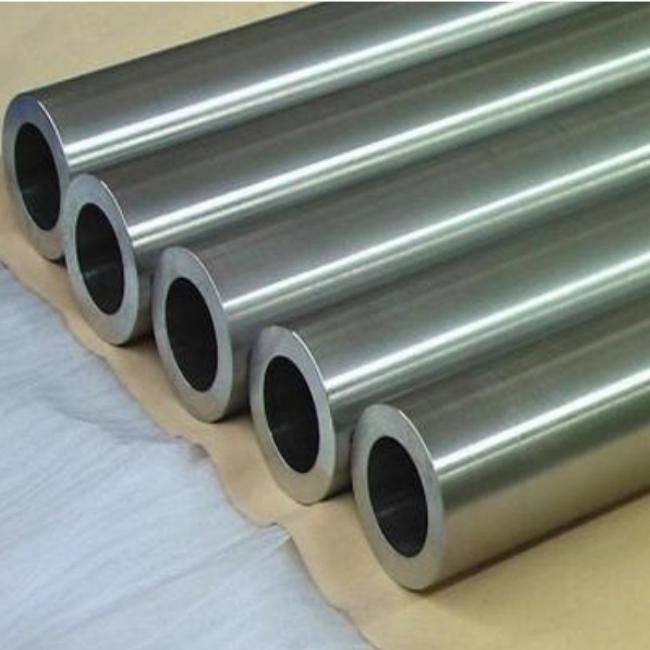

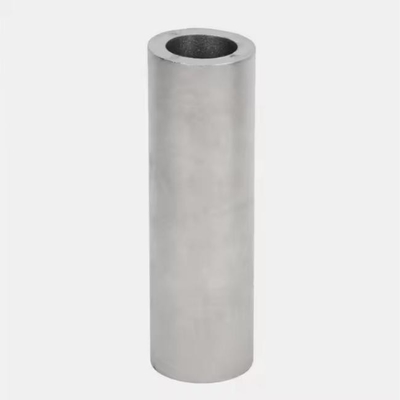

Alloy 926 UNS N08926 Stainless Steel Seamless Pipe
INCOLOY 926 Seamless Tubes
Alloy 926 UNS N08926 stainless steel seamless pipe is a high corrosion resistant super austenitic stainless steel material containing high Cr and high Mo. 926 pipe has a similar chemical composition with 904L stainless steel seamless pipe, its nitrogen content is 0.2%, molybdenum content is 6.5%.
It maintains good corrosion resistance in harsh environments such as high temperature, sea water or flue gas desulfurization equipment. In some cases, it is even comparable to alloy C276 seamless pipe.
Our Alloy 926 UNS N08926 stainless steel seamless pipe tubes are produced strictly to the default ASTM B677 standard. In addition, we do a complete hydrostatic test on nickel alloys pipes.
| Grade | UNS | Density |
Tensile Strength (MPa min) |
Yield Strength (MPa min) |
Hardness (HRC) | Elongation min (%) | Vickers Hardness(HV) |
| INCOLOY 926 | N08926 | 8.1 | 650MPa min | 295MPa min | Annealed | 35% min | 150 min |
Chemical Composition(%):
| Ni | Cr | C | Si | Mn | P | S | Mo |
| 24.0-26.0 | 19.0-21.0 | 0.02max | 0.5max | 1.0max | 0.03max | 0.01max | 6.0-7.0 |
| Grade | UNS | DENSITY | EN/DIN W.Nr | CONDITION |
| Nickel 200 | N02200 | 8.89 | 2.4066 | Annealed |
| Nickel 201 | N02201 | 8.89 | 2.4068 | Annealed |
| MONEL 400 | N04400 | 8.80 | 2.4360 | Annealed |
| MONEL K-500 | N05500 | 8.44 | 2.4375 | Aged |
| INCOLOY 825 | N08825 | 8.14 | 2.4858 | Annealed |
| INCOLOY 925 | N09925 | 8.08 | - | Aged |
| INCOLOY 926 | N08926 | 8.1 | 1.4529 | Sol.Annealed |
| INCOLOY A-286 | S66286 | 7.94 | - | - |
| INCOLOY 800 | N08800 | 7.94 | 1.4876 | Annealed |
| INCOLOY 800H | N08810 | 7.94 | 1.4958 | Annealed |
| INCOLOY 800HT | N08011 | 7.94 | 1.4959 | Annealed |
| ALLOY 20 | N08020 | 8.08 | 2.4660 | Annealed |
| ALLOY 28 | N08028 | 8.0 | 1.4563 | Annealed |
| NIMONIC 80A | N07080 | 8.19 | 2.4952 | Aged |
| NIMONIC 901 | N09901 | 8.14 | 2.4662 | - |
| INCONEL 625 | N06625 | 8.44 | 2.4856 | Annealed |
| INCONEL 718 | N07718 | 8.19 | 2.4668 | Aged |
| INCONEL X-750 | N07750 | 8.28 | 2.4669 | Aged |
| INCONEL 600 | N06600 | 8.47 | 2.4816 | Annealed |
| INCONEL 601 | N06601 | 8.11 | 2.4851 | - |
| HASTELLOY C-276 | N10276 | 8.87 | 2.4819 | Annealed |
| HASTELLOY C-22 | N06022 | 8.69 | 2.4602 | Sol.Annealed |
| HASTELLOY C-4 | N06455 | 8.64 | 2.4610 | Sol.Annealed |
| HASTELLOY B-2 | N10665 | 9.22 | 2.4617 | Annealed |
| HASTELLOY B-3 | N10675 | 9.22 | 2.4600 | Annealed |
| HASTELLOY X | N06002 | 8.22 | 2.4665 | Aged |
| F44 | S31254 | 8.0 | 1.4547 | Annealed |
| F51 | S31803 | 7.8 | 1.4462 | Solution |
| F53 | S32750 | 7.8 | 1.4410 | Solution |
| F55 | S32760 | 7.8 | 1.4501 | Solution |
