Nickel alloy weld neck flanges are integral components used to connect various sections of piping in systems that require high corrosion resistance, strength, and tolerance to extreme temperatures. These flanges are distinguished by their long tapered hub, which provides important reinforcement for use in various high-pressure and high-thermal-stress applications. The detailed features, properties, applications, and specifications of nickel alloy weld neck flanges are outlined below.

Features

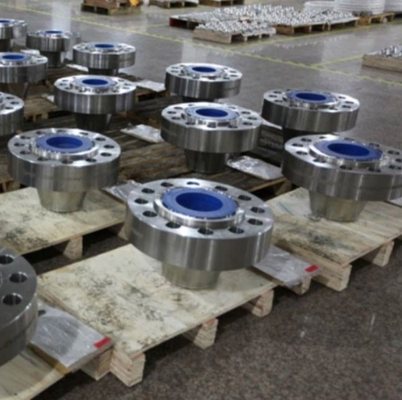

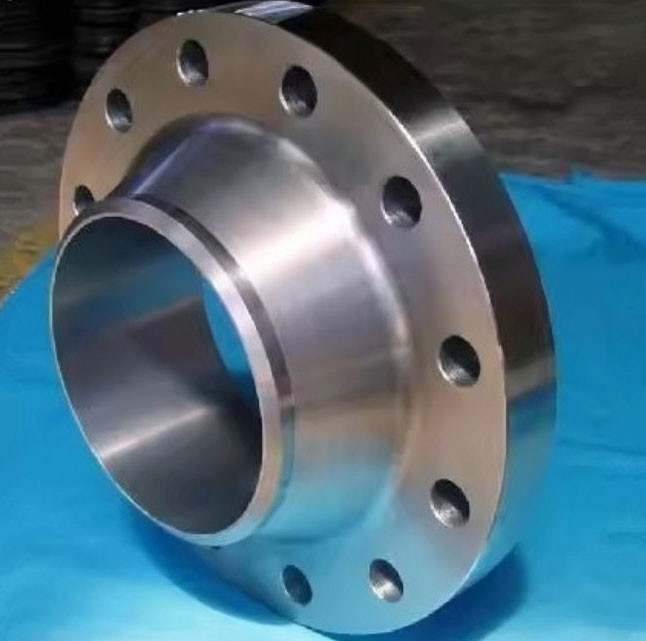

• Tapered Hub: The distinctive feature of the weld neck flange is its long, tapered hub, which transitions smoothly from the flange to the pipe. This geometric design provides strength and supports the flange in bearing additional stresses.
• Welding Neck: The flange is welded to the pipe via its neck, which provides a high-strength bond and minimizes the risk of stress concentration at the base of the hub.
• Bore Match: The bore of the weld neck flange matches the bore of the pipe, reducing turbulence and erosion inside the pipeline.

Materials

Nickel alloys used for weld neck flanges often include, but are not limited to:

• Inconel: Known for its high temperature and corrosion resistance, making it suitable for extreme environments.
• Hastelloy: Offers exceptional resistance to strong oxidizing solutions, ideal for chemical processing industries.
• Monel: Exhibits excellent resistance to seawater and acidic environments, commonly used in marine and chemical applications.
• Incoloy: Provides good strength and resistance to oxidation, carburization, and sulfidation.

Properties

• Corrosion Resistance: Nickel alloys resist a wide range of corrosive environments, including oxidizing and reducing conditions, acidic and alkaline solutions, and environments containing chlorides and sulfur compounds.
• High-Temperature Performance: These flanges maintain structural integrity and mechanical properties even at elevated temperatures, making them suitable for high-temperature applications.
• Strength: Weld neck flanges made from nickel alloys exhibit high mechanical strength, providing reliability in high pressure systems.

Applications

• Chemical Processing: For systems that handle corrosive materials and require robust corrosion resistance.
• Oil and Gas Industry: Particularly in offshore drilling and processing where corrosion from seawater is a concern.
• Power Generation: In nuclear, coal-fired, and gas turbine power plants where high temperature and pressure conditions are common.
• Aerospace: For applications that demand materials capable of withstanding extreme temperatures and pressures.

Specifications and Standards
Nickel alloy weld neck flanges are manufactured according to international standards to ensure compatibility and reliability across various applications. These standards include:

• ASTM B564: Standard specification for nickel alloy forgings.
• ASME B16.5: Covers pipe flanges and flanged fittings for sizes NPS ½ through NPS 24.
• ASME B16.47: Provides standards for large diameter steel flanges for sizes NPS 26 through NPS 60.
• ISO Standards: Various international standards for flanges and fittings.

Installation and Welding Considerations

• The quality of the welding joining the flange to the pipe is crucial for the integrity of the pipeline. Qualified welding procedures and skilled personnel are required.
• It's important to consider the thermal expansion of nickel alloys during the welding process to avoid stresses that could compromise the flange.
• The proper selection of filler metals is essential to ensure compatible mechanical properties and corrosion resistance.

In summary, nickel alloy weld neck flanges play a critical role in systems requiring robust performance against corrosion, high temperatures, and pressures. Their design, combined with the superior properties of nickel alloys, makes them a preferred choice for challenging environments.
