Nickel Alloy Loose Type Flange High Pressure Rating LJRF Lap Joint Flanges for Offshore Field

Nickel Alloy Loose Type Flange High Pressure Rating LJRF Lap Joint Flanges for Offshore Field
Nickel Alloy Loose Type Flange High Pressure Rating LJRF Lap Joint Flanges for Offshore Field Nickel Alloy Loose Type Flange High Pressure Rating LJRF Lap Joint Flanges for Offshore Field

Large Image :  Nickel Alloy Loose Type Flange High Pressure Rating LJRF Lap Joint Flanges for Offshore Field

Product Details:
Place of Origin: China
Brand Name: DINGSCO
Certification: ISO 9001：2015, PED 2014/68 EU, API 6A, API-20B, TSG, NORSOK
Model Number: According to customers' requests
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: According to customers' requests
Delivery Time: (Sample order) 7 days
Payment Terms: T/T
Supply Ability: Negotiable
Contact Now

Nickel Alloy Loose Type Flange High Pressure Rating LJRF Lap Joint Flanges for Offshore Field

Description
Product Name: Lap Joint Flanges LJRF Nickel Alloy Loose Flanges High Pressure Rating Offshore Field Material: Nickel Based Alloy
Pressure Rating: 150#, 300#, 600#, 900#, Etc Dimensions: As Per Your Drawings
Applications: Offshore, Oil & Gas, Shipbuilding, Water System, Pipe Projects, Electric Power, Etc. Grade: Monel,Inconel,Incoloy,Hastelloy,etc
Highlight:

Nickel Alloy Loose Type Flange

,

LJRF Flange

,

LJRF Lap Joint Flanges

Lap Joint Flanges LJRF Nickel Alloy Loose Flanges for High Pressure Rating Offshore Field

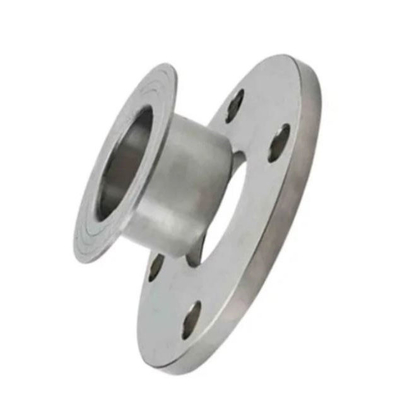

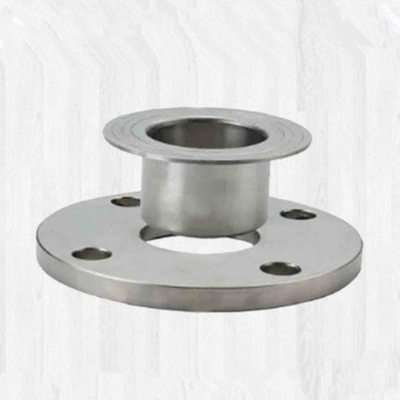

This type of connection is used for piping in high-cost raw materials like as stainless steel and nickel alloy as it helps to reduce the overall cost of the needed flange connections. A lap joint connection is made by the combination of a stub end (which is the part welded to the pipe) and a backing flange, or lapped flange.



Lap Joint pipe flanges are used with Stub ends to make the flange connections in pipeline systems. These come in ½” to 24” sizes, in 150# , 300#, 400#, 600#,etc pressure class. A stainless steel stub end can be for example used in combination with a carbon steel lap joint flange to have a dependable welded connection at a cheaper cost than a full stainless steel connection (less stainless steel is needed, hence the cost is lower). Lap joint flanges have generally a raised face flange and are sealed with flat ring gasket.

Nickel Alloy Loose Type Flange High Pressure Rating LJRF Lap Joint Flanges for Offshore Field 0

Nickel Alloy Loose Type Flange High Pressure Rating LJRF Lap Joint Flanges for Offshore Field 1
