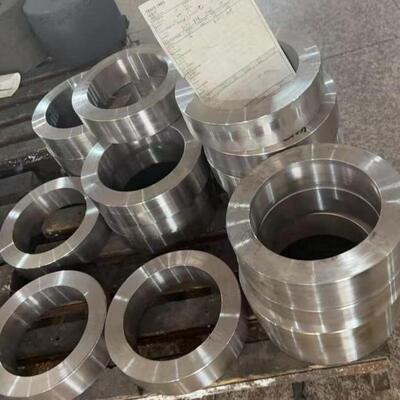

ASTM B564 Monel 400 Nickel Alloy Forging Ring UNS N04400 Hot Forged Annealed for Industrial Valve Pump Components

ASTM B564 Monel 400 Nickel Alloy Forging Ring UNS N04400 Hot Forged Annealed for Industrial Valve Pump Components
ASTM B564 Monel 400 Nickel Alloy Forging Ring UNS N04400 Hot Forged Annealed for Industrial Valve Pump Components

Large Image :  ASTM B564 Monel 400 Nickel Alloy Forging Ring UNS N04400 Hot Forged Annealed for Industrial Valve Pump Components

Product Details:
Place of Origin: China
Certification: ISO 9001:2015, ASTM B564
Model Number: ASTM B564 Monel 400
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Packaging Details: Standard Export Package
Delivery Time: 10-20 working days for stock sizes, 30-50 days for custom production
Payment Terms: T/T
Contact Now Chat Now

ASTM B564 Monel 400 Nickel Alloy Forging Ring UNS N04400 Hot Forged Annealed for Industrial Valve Pump Components

Description
Material Grade: Monel 400 (UNS N04400 / W.Nr. 2.4360) Applicable Standard: ASTM B564 / ASME SB564
Forging Type: Hot Forged + Solution Annealed Tensile Strength: ≥483 MPa
Yield Strength: ≥172 MPa Elongation: ≥35%
Hardness: ≤35 HRB NDT Available: UT Per ASTM A388, PT Per ASTM E165, MT Per ASTM E709
Highlight:

ASTM B564 Certified Forged Ring

,

Industrial Valve Grade Monel 400

,

Custom Precision Machined Nickel Forging

ASTM B564 Monel 400 Forging Rings — Industrial Grade

Our ASTM B564 Monel 400 Forging Rings are manufactured in full compliance with ASTM B564 / ASME SB564 standards, ensuring consistently high quality for demanding industrial applications. Each ring is hot forged from premium UNS N04400 nickel-copper alloy, followed by controlled solution annealing to achieve optimal grain structure and mechanical properties.

With tensile strength exceeding 550 MPa and elongation above 35%, these forging rings are engineered for heavy-duty service in valve bodies, pump casings, high-pressure flanges, and other critical industrial components. Precision CNC machining delivers tight dimensional tolerances to meet your exact engineering specifications.

ASTM B564 Monel 400 Nickel Alloy Forging Ring UNS N04400 Hot Forged Annealed for Industrial Valve Pump Components

ASTM B564 / ASME SB564 Compliance

ASTM B564 is the international standard specification for nickel alloy forgings, covering hot-finished and cold-finished forgings, forged billets, and forged bar. Our Monel 400 forging rings fully conform to this standard with:

◆ Chemical composition per ASTM B564 Table 1
◆ Mechanical properties per ASTM B564 Table 2
◆ Solution annealing per ASTM B564 requirements
◆ Dimensional tolerances per ASTM B564 Section 7
◆ NDT acceptance criteria per ASTM A388/E165/E709
◆ Full mill test certificate (EN 10204 3.1)

Manufacturing Process

❶

Raw Material Inspection

Incoming billet verified against ASTM B564 chemistry requirements via OES analysis

❷

Hot Forging

Heated to 950-1150°C and forged with controlled reduction ratio for uniform grain flow

❸

Solution Annealing

Heat treated at 870-980°C followed by rapid water quenching for optimal properties

❹

Precision Machining

CNC turned and milled to customer drawings with ±0.05mm tolerance capability

❺

Final Inspection

100% dimensional check, NDT, mechanical testing, and surface quality verification

Technical Specifications

Parameter Specification
Material Grade Monel 400 / UNS N04400 / W.Nr. 2.4360
Applicable Standard ASTM B564 / ASME SB564
Chemical Composition Ni 63.0% min, Cu 28.0-34.0%, Fe 2.5% max, Mn 2.0% max, Si 0.5% max, C 0.3% max, S 0.024% max
Density 8.80 g/cm³
Tensile Strength ≥ 483 MPa
Yield Strength (0.2%) ≥ 172 MPa
Elongation ≥ 35%
Hardness ≤ 35 HRC
NDT Methods UT (ASTM A388), PT (ASTM E165)

Industrial Applications

🔧

Industrial Valves

Valve bodies, bonnets, seat rings, and stem guides for gate, globe, and check valves

⚙️

Pump Components

Pump casings, impeller wear rings, shaft sleeves, and bearing housings

🔩

High-Pressure Flanges

Weld neck, slip-on, and blind flanges for Class 150-2500 pressure ratings

⛽

Oil & Gas Equipment

Wellhead components, choke bodies, and downhole tool rings for sour service

⚡

Power Generation

Turbine seal rings, steam valve seats, and feedwater heater components

🏗️

General Engineering

Custom machined rings for OEM equipment, repair parts, and prototyping

Quality Control & Testing

✓ Incoming raw material chemical verification (OES)
✓ In-process forging temperature monitoring
✓ Post-annealing hardness testing (HRB)
✓ Room temperature tensile testing per ASTM E8
✓ Ultrasonic testing (UT) per ASTM A388
✓ Liquid penetrant testing (PT) per ASTM E165
✓ Magnetic particle testing (MT) per ASTM E709
✓ Grain size analysis per ASTM E112
✓ 100% dimensional inspection with CMM
✓ Surface roughness measurement (Ra)

Custom ASTM B564 Monel 400 Forging Rings — Built to Your Spec

🔹 Fully compliant with ASTM B564 / ASME SB564
🔹 Custom dimensions and configurations available
🔹 Complete NDT documentation package
🔹 15+ years of nickel alloy forging expertise
🔹 Competitive factory-direct pricing
🔹 Rush orders available for urgent requirements

📩 Send us your drawings or specifications for a prompt quotation and lead time estimate!
