Nickel 200 Round Bar 99.6% Pure Nickel Alloy Forging Bar with Superior Caustic Corrosion Resistance and Ferromagnetic Properties

Nickel 200 Round Bar 99.6% Pure Nickel Alloy Forging Bar with Superior Caustic Corrosion Resistance and Ferromagnetic Properties
Nickel 200 Round Bar 99.6% Pure Nickel Alloy Forging Bar with Superior Caustic Corrosion Resistance and Ferromagnetic Properties Nickel 200 Round Bar 99.6% Pure Nickel Alloy Forging Bar with Superior Caustic Corrosion Resistance and Ferromagnetic Properties Nickel 200 Round Bar 99.6% Pure Nickel Alloy Forging Bar with Superior Caustic Corrosion Resistance and Ferromagnetic Properties Nickel 200 Round Bar 99.6% Pure Nickel Alloy Forging Bar with Superior Caustic Corrosion Resistance and Ferromagnetic Properties Nickel 200 Round Bar 99.6% Pure Nickel Alloy Forging Bar with Superior Caustic Corrosion Resistance and Ferromagnetic Properties Nickel 200 Round Bar 99.6% Pure Nickel Alloy Forging Bar with Superior Caustic Corrosion Resistance and Ferromagnetic Properties

Large Image :  Nickel 200 Round Bar 99.6% Pure Nickel Alloy Forging Bar with Superior Caustic Corrosion Resistance and Ferromagnetic Properties

Product Details:
Place of Origin: China
Brand Name: DINGSCO
Certification: ISO 9001:2015
Model Number: N02200
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: According to Customers' Requests
Delivery Time: (Sample Order) 7 days
Payment Terms: T/T
Supply Ability: Negotiable
Contact Now Chat Now

Nickel 200 Round Bar 99.6% Pure Nickel Alloy Forging Bar with Superior Caustic Corrosion Resistance and Ferromagnetic Properties

Description
Material Grade: Nickel 200 (UNS N02200 / 2.4060) Nickel Content: 99.6% Minimum
Product Form: Forging Round Bar Diameter Range: 10mm - 500mm
Length: 1000mm - 6000mm Density: 8.89 G/cm³
Melting Point: 1440°C Tensile Strength: 60-85 MPa
Yield Strength: 15-45 MPa Elongation: 35-55%
Magnetic Properties: Ferromagnetic At Room Temperature Max Service Temperature: 315°C (600°F)
Highlight:

Superior Alkaline Corrosion Resistance

,

High Thermal Electrical Conductivity

,

Wide Temperature Range Ductility

Nickel 200 Round Bar - 99.6% Pure Nickel Alloy Forging Bar
Nickel 200 (UNS N02200 / EN 2.4060) is a commercially pure wrought nickel alloy with superior caustic corrosion resistance, high ductility across temperature ranges, and exceptional thermal and electrical conductivity.
Product Attributes
AttributeSpecification
Material GradeNickel 200 (UNS N02200 / 2.4060)
Product FormForging Round Bar
Nickel Content99.6% Minimum
Diameter Range10 mm - 500 mm
Length1000 mm - 6000 mm
Density8.89 g/cm³
Melting Point1440°C
Magnetic PropertiesFerromagnetic at Room Temperature
CertificationISO 9001:2015, PED 2014/68/EC, API 6A
Material Overview
Nickel 200 is a commercially pure (99.6% minimum) wrought nickel alloy known for exceptional corrosion resistance in caustic environments like sodium hydroxide. It maintains product purity in chemical processing, synthetic fiber production, and food handling applications.
Key Characteristics
  • Composition: Minimum 99.6% nickel with maximum 0.15% carbon
  • Temperature Range: Recommended for service below 315°C (600°F)
  • Magnetic/Thermal: Ferromagnetic at room temperature with high electrical and thermal conductivity
  • Corrosion Resistance: Outstanding resistance to neutral and alkaline salt solutions
  • Mechanical Properties: Excellent properties with low gas content and vapor pressure
  • Formability: Can be hot formed to any shape and cold formed by standard methods
Chemical Composition
ElementContent (Wt.%)
Nickel (Ni)Balance (99.6% min.)
Iron (Fe)Max 0.40
Carbon (C)Max 0.08
Manganese (Mn)Max 0.35
Silicon (Si)Max 0.35
Copper (Cu)Max 0.25
Sulfur (S)Max 0.01
Physical Properties
PropertyValue
Density8.89 g/cm³
Melting Point1440°C
Magnetic PropertiesFerromagnetic at Room Temperature
Electrical ConductivityHigh
Thermal ConductivityHigh
Vapor PressureLow
Gas ContentLow
Mechanical Properties
PropertyValue (Annealed Condition)
Tensile Strength (Rm)60 - 85 MPa
Yield Strength (RP0.2)15 - 45 MPa
Elongation (A5)35 - 55%
Hardness (HB)90 - 120
Modulus of Elasticity204 GPa
Corrosion Resistance Comparison
Nickel 200 demonstrates outstanding corrosion resistance in caustic and alkaline environments. The table compares its critical pitting temperature (CPT) and critical crevice temperature (CCT) performance against other nickel alloys.
Corrosive MediumNickel 200Nickel 201Monel 400Inconel 600
NaOH (Caustic Soda, 50%)ExcellentExcellentGoodGood
Neutral Salt SolutionsExcellentExcellentVery GoodVery Good
Distilled WaterExcellentExcellentExcellentExcellent
Alkaline Solutions (pH > 10)ExcellentExcellentGoodGood
Organic Acids (Moderate Temp)GoodGoodGoodVery Good
Hydrochloric Acid (Dilute, RT)FairFairGoodFair
Fluorine Gas (Dry)ExcellentExcellentFairGood
Hydrogen Chloride (Dry, High Temp)ExcellentExcellentPoorFair
Rating scale: Excellent > Very Good > Good > Fair > Poor. RT = Room Temperature.
Material Characteristics
  • Superior Alkaline Corrosion Resistance: Exceptional resistance to caustic soda and all alkaline media
  • High Ductility Over Wide Temperature Range: Excellent ductility from cryogenic temperatures up to 315°C
  • Ferromagnetic Properties: Suitable for magnetic applications requiring corrosion resistance
  • High Thermal and Electrical Conductivity: Superior conductivity for electronic and battery components
  • Low Gas Content and Vapor Pressure: Excellent performance in vacuum and controlled-atmosphere applications
  • Excellent Mechanical Properties: Good combination of strength and ductility in annealed condition
Product Image Gallery

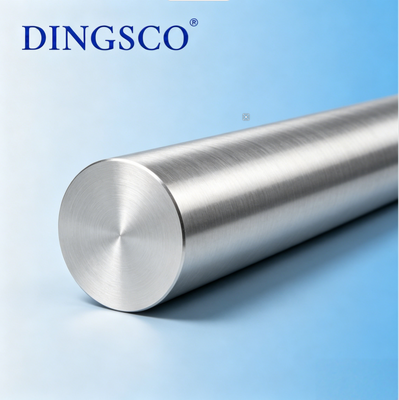

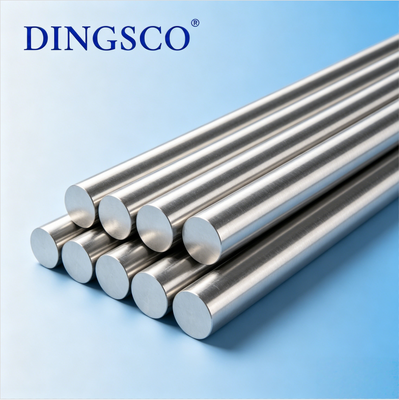

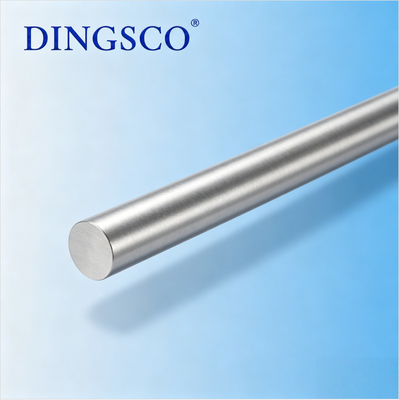

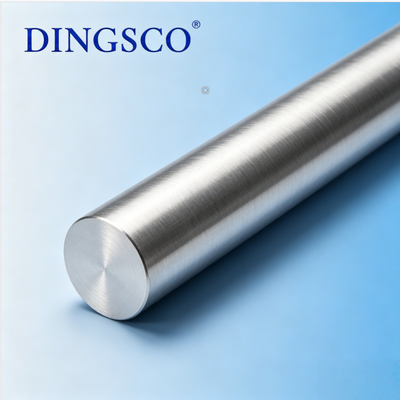

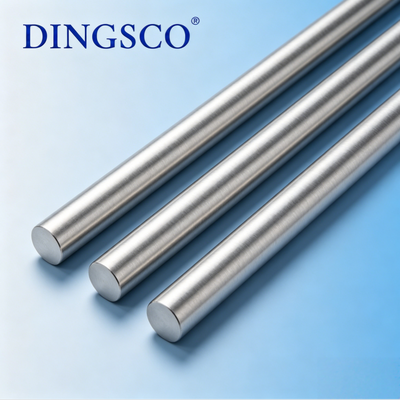

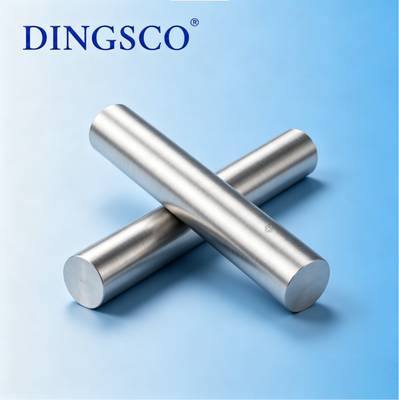

Nickel 200 Forging Round Bar - Surface Finish & Section Views. Products available in hot-forged, annealed, and machined surface finishes. Custom dimensions and surface treatments available upon request.
Nickel 200 Forging Round Bar surface finish and cross-section view Nickel 200 Round Bar dimensional specifications and material structure
Supply Forms
Product FormSize RangeCondition
Forging Round BarDiameter 10 mm - 500 mmHot Forged / Annealed / Machined
Flat BarThickness 5 mm - 100 mmHot Rolled / Annealed
Forging Ring / DiscOD up to 2000 mmHot Forged / Annealed / Machined
Custom Forging PartsPer Customer DrawingPer Specification
Typical Applications
  • Chemical processing equipment handling caustic soda and alkaline solutions
  • Synthetic fiber production and soap manufacturing
  • Food processing equipment for brines, fatty acids, and fruit juices
  • Electronic components, battery connections, and electrode contacts
  • Heating element wires and conductors in alkaline fuel cells
  • Storage tanks for fluorine production and phenol transport
  • Production of vinyl chloride monomer and hydrogen chloride
  • Aerospace components requiring corrosion resistance and magnetic properties
  • Electrical and electronic components
  • Electrode contacts and current conductors in batteries
DINGSCO - Professional Nickel Alloy Manufacturer
DINGSCO is a trusted professional manufacturer specializing in nickel alloys, titanium alloys, and high-performance alloy steel products, committed to delivering excellence in every order.
Quality Assurance
Our mission is to provide only the best quality products. As an ISO 9001:2015, PED 2014/68/EC, and API 6A certified manufacturer, we enforce strict quality control at every production stage.
DINGSCO quality assurance and certification documentation
Science and Technology Innovation Strategy
We pay close attention to customer needs, implement product innovation, and leverage our full range of product types to provide one-stop service through continuous improvement.
DINGSCO technology innovation and research facilities
Cooperation
We actively participate in team meetings, support decision-making, share experience, and build lasting partnerships with customers worldwide through skilled collaboration.
DINGSCO team collaboration and partnership building
Material Selection
In addition to Nickel 200, DINGSCO offers a comprehensive range of nickel alloys and specialty metals to meet diverse application requirements.
Alloy GradeTypeKey Feature
Nickel 201Low-Carbon Pure NickelSuperior for temperatures above 315°C
Monel 400Ni-Cu AlloyExcellent seawater and acid resistance
Monel K-500Precipitation-Hardenable Ni-CuHigh strength with corrosion resistance
Inconel 600Ni-Cr-Fe AlloyOxidation resistance at high temperatures
Inconel 625Ni-Cr-Mo AlloyOutstanding fatigue and pitting resistance
Inconel 718Precipitation-Hardenable Ni-CrHigh strength up to 700°C
Incoloy 825Ni-Fe-Cr-Mo-Cu AlloyResistance to sulfuric and phosphoric acids
Hastelloy C-276Ni-Cr-Mo-W AlloyUniversal corrosion resistance
Contact our technical team for material selection guidance tailored to your specific application.
DINGSCO material selection guide and alloy comparison chart
Customized Products
At DINGSCO, we understand that standard products may not always meet your exact requirements. We offer comprehensive customization services:
  • Custom Dimensions: Non-standard diameters, lengths, and cross-section profiles per your drawings
  • Custom Heat Treatment: Tailored annealing, stress-relieving, and age-hardening cycles
  • Custom Machining: CNC turning, milling, drilling, and threading services
  • Custom Testing: Additional NDT, mechanical testing, chemical analysis, and corrosion testing
  • Custom Packaging: Export-grade packaging per customer specifications
  • OEM Service: Manufacture to your specifications under your brand or ours
DINGSCO custom product manufacturing and engineering capabilities
Send us your drawings or specifications - we will deliver precisely what you need.
