Custom UNS R30016 Cobalt Alloy Forging Ring for Machining and Finishing

Haynes Stellite 6B is a cobalt-based superalloy renowned for its exceptional wear resistance, high-temperature strength, and corrosion resistance. It belongs to the Stellite family of alloys, which are widely used in extreme environments such as aerospace, industrial gas turbines, valve components, and chemical processing equipment.

Composition:

• Primary Element: Cobalt (Co)
• Major Alloying Elements: Chromium (Cr) for oxidation resistance, Tungsten (W) for strength and wear resistance, and Carbon (C) for carbide formation.

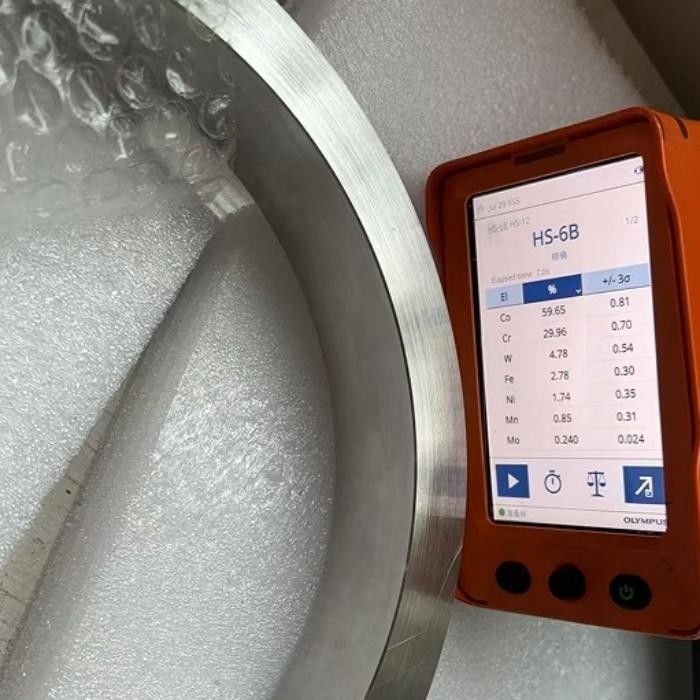

• Typical Composition: ~30% Cr, ~4.5% W, ~1.2% C, balance Co.

Properties:

• High Hardness: Retains hardness at elevated temperatures.
• Wear Resistance: Superior resistance to abrasion, galling, and erosion.
• Corrosion Resistance: Excellent performance in oxidizing and reducing environments.
• Thermal Stability: Maintains mechanical properties at temperatures up to 1000°F (540°C) and higher.

Forging Process:

• Stellite 6B is typically hot forged to achieve the desired ring geometry.
• Forging improves grain structure, enhancing mechanical properties.
• Post-forging heat treatment may be applied to optimize hardness and stress relief.

Forging Ring Specifications

• Shape: Precision-forged into a ring (annular) shape with controlled dimensions.
• Dimensions: Customizable outer diameter (OD), inner diameter (ID), and height per application requirements.
• Surface Finish: Machined or ground to meet tolerances, with optional coatings for enhanced performance.

Applications:

• Turbine blades and seals
• Valve seats and trim
• Bearing components
• High-wear industrial parts

Advantages of Haynes Stellite 6B Forging Rings

• Durability: Long service life in abrasive and high-temperature conditions.
• Performance: Reliable in aggressive chemical and thermal environments.
• Customizability: Can be forged and machined to precise specifications.

Industries Served

• Aerospace
• Oil & Gas
• Power Generation
• Chemical Processing
• Automotive (high-performance engines)

Haynes Stellite 6B forging rings are a premium solution for applications demanding extreme wear resistance and thermal stability. Their forged microstructure ensures superior integrity compared to cast alternatives.
