Monel 400 Hexagon Bar Nickel Based Corrosion Resistant High Temperature Alloys Hex Bar

Description
Product Name: Monel 400 Hexagon Bar Nickel Based Corrosion Resistant High Temperature Alloys Hex Bar Size: Customized
Application: Marine Industry,Chemical Processing,Aerospace,Oil And Gas,Marine Engineering Material: Monel 400
Grade: UNS N04400 Type: Hexagon Bar,Also Other Forms For Your Choice
Highlight:

High Temperature Alloys Hex Bar

,

Monel 400 Hex Bar

,

Nickel Based Corrosion Resistant Hex Bar

Monel 400 Hexagon Bar Nickel Based Corrosion Resistant High Temperature Alloys Hex Bar

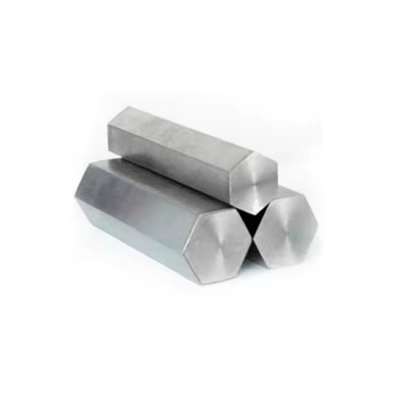

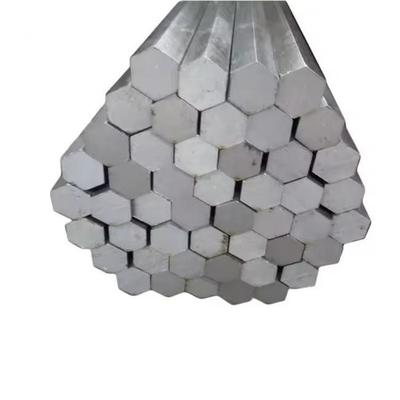

MONEL 400 hexagon bars are a type of nickel-copper alloy known for their excellent resistance to corrosion, particularly in marine environments. This alloy is prized for its strength and durability, making it suitable for a range of demanding applications.



Applications:

  1. Marine Industry: MONEL 400 is widely used in marine environments for components such as shafts, propellers, and pumps, due to its exceptional resistance to seawater corrosion.

  2. Chemical Processing: The alloy's resistance to a variety of chemicals makes it ideal for chemical processing equipment, including valves, fittings, and tubing.

  3. Aerospace: MONEL 400 is used in aerospace applications for parts that need to withstand harsh conditions and resist corrosion, such as certain engine components.

  4. Oil and Gas: It is employed in oil and gas extraction equipment, particularly in environments where resistance to sulfuric acid and other aggressive substances is required.

  5. Marine Engineering: Used in desalination plants and other marine engineering applications where resistance to seawater and marine atmospheres is critical.

MONEL 400 hexagon bars offer high strength and resistance to wear, making them a reliable choice for various high-performance and corrosive environments.



Grade UNS Density

Tensile Strength
(MPa min)

  Yield Strength
(MPa min)

Reduction of Area ,min (%)

Elongation       min (%)

   Hardness    (HRC)

MONEL 400

N04400 8.8 483MPa min 172MPa min / 35% min HRC 35 max


Chemical Composition(%):


MONEL 400 Ni Cu C Fe Mn
63.0min 28.0-34.0 0.3max 2.5max 2.0max
S Si
0.024max 0.5max



Grade UNS DIN
Monel 400 N04400 W.Nr. 2.4360
Monel K-500 N05500 W.Nr. 2.4375
Inconel 625 N06625 W.Nr. 2.4856
Inconel 718 N07718 W.Nr. 2.4668
Inconel X-750 N07750 W. Nr. 2.4669
Inconel 600 N06600 W.Nr. 2.4816
Inconel 601 N06601 W.Nr. 2.4851
Incoloy 825 N08825 W.Nr. 2.4858
Incoloy A-286 S66286 W.Nr.1.4980
Hastelloy C-276 N10276 W.Nr.2.4819
Hastelloy C-22 N06022 W.Nr.2.4602
Hastelloy C-4 N06455 W.Nr.2.4610
Hastelloy B-3 N10675 W.Nr.2.4600
Hastelloy X N06002 W.Nr.2.4665
Hastelloy B-2 N10665 W.Nr.2.4617
