Inconel Alloy X-750 Forging Rings For High Pressure Turbine Engine Aerospace

Inconel Alloy X-750 Forging Rings For High Pressure Turbine Engine Aerospace
Inconel Alloy X-750 Forging Rings For High Pressure Turbine Engine Aerospace Inconel Alloy X-750 Forging Rings For High Pressure Turbine Engine Aerospace

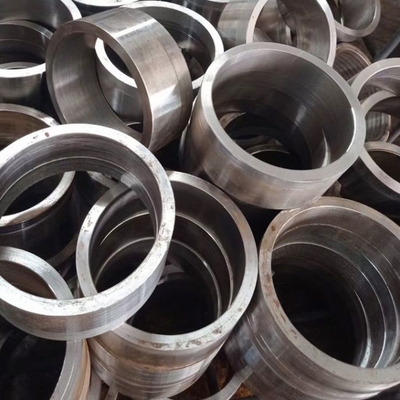

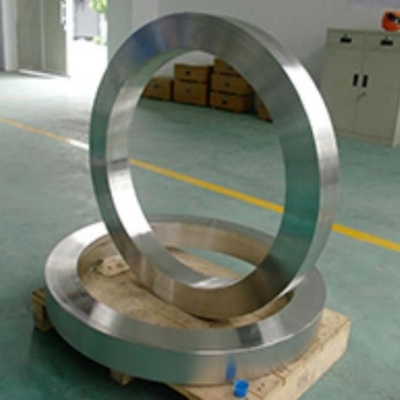

Large Image :  Inconel Alloy X-750 Forging Rings For High Pressure Turbine Engine Aerospace

Product Details:
Place of Origin: China
Brand Name: DINGSCO
Certification: ISO 9001:2015,PED 2014/68/EU,API 6A,API-20B,TSG,NORSOK
Model Number: According to customers' requirements
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: According to customers' requests
Delivery Time: (Sample order) 7 days
Payment Terms: T/T
Supply Ability: Negotiable
Contact Now

Inconel Alloy X-750 Forging Rings For High Pressure Turbine Engine Aerospace

Description
Product Name: Inconel Alloy X-750 Forging Rings For High Pressure Turbine Engine Aerospace Material: Nickel Alloy
Size: Customized Grade: Inconel, Hastelloy, Waspaloy,Rene Alloys
Shape: Ring Application: Aerospace,Power Generation
Process: Forging Surface Treatment: As Per Your Demands
Highlight:

Inconel Alloy X-750 Forging Rings

,

Aerospace Forging Rings

Inconel Alloy X-750 Forging Rings for High Pressure Turbine Engine Aerospace



High Pressure Turbine (HPT) engines are critical components in both aerospace and power generation sectors, operating under extremely high temperatures and pressures. Nickel alloy forging rings play a pivotal role in these engines due to their superior strength, corrosion resistance, and thermal stability. Here are details concerning nickel alloy forging rings used in High Pressure Turbine engines:



Composition:



Nickel alloy forging rings for HPT engines are made from specialized nickel-based superalloys. These superalloys often include additional elements such as chromium, cobalt, molybdenum, and aluminum to enhance their high-temperature strength, durability, and corrosion resistance. Common superalloys include Inconel, Hastelloy, Waspaloy, and Rene alloys.



Properties:



  1. High-Temperature Capability: Nickel alloy forging rings can withstand the extreme temperatures found in HPT engines, often exceeding 1000°C.
  2. Creep Resistance: They retain their mechanical properties under high stress for long periods at high temperatures, resistance to creep is crucial for maintaining engine integrity.
  3. Corrosion and Oxidation Resistance: The inclusion of chromium and aluminum provides excellent resistance against oxidation and corrosion caused by fuel combustion.
  4. Fatigue Resistance: These alloys are designed to resist fatigue cracking under the cyclic stresses of engine operation.



Applications:



In HPT engines, nickel alloy forging rings are utilized in components such as:



  • Turbine disks
  • Seals and casing segments
  • Compressor rings
  • Rotor and stator assemblies



Grade UNS Density

Tensile Strength

(MPa min)

Yield Strength

(MPa min)

 Reduction of Area min (%) Elongation min (%) Hardness (HRC)
INCONEL X-750 N07750 8.28 1170MPa min 790MPa min 18% 18% min HRC35 max
INCONEL 625 N06625 8.44 827MPa min 414MPa min / 30% min HRC35 max
INCONEL 718 N07718 8.19 1275MPa min 1034MPa min 15% 12% min HRC35-40



Inconel Alloy X-750 Forging Rings For High Pressure Turbine Engine Aerospace 0
