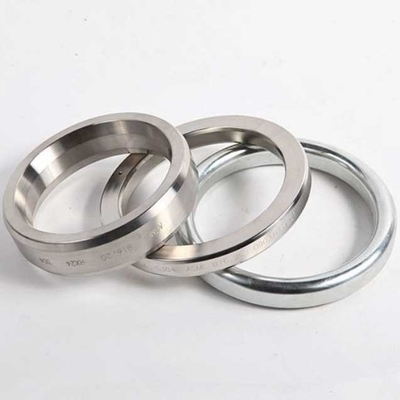

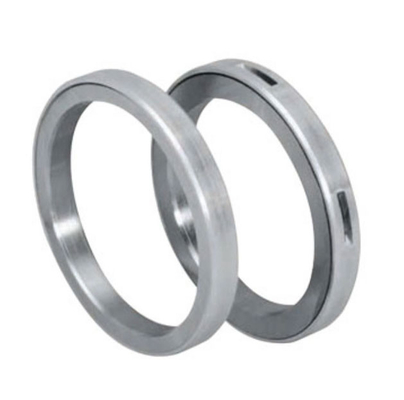

API 6A Nickel Alloy Inconel 718 Ring Type Joint Gasket In Flanges And Pipe Fittings

API 6A Nickel Alloy Inconel 718 Ring Type Joint Gasket In Flanges And Pipe Fittings
API 6A Nickel Alloy Inconel 718 Ring Type Joint Gasket In Flanges And Pipe Fittings API 6A Nickel Alloy Inconel 718 Ring Type Joint Gasket In Flanges And Pipe Fittings

Large Image :  API 6A Nickel Alloy Inconel 718 Ring Type Joint Gasket In Flanges And Pipe Fittings

Product Details:
Place of Origin: China
Brand Name: DINGSCO
Certification: ISO 9001:2015,PED 2014/68/EU,API 6A,API-20B,TSG,NORSOK
Model Number: According to customers' requirements
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: According to customers' requests
Delivery Time: (Sample order) 7 days
Payment Terms: T/T
Supply Ability: Negotiable
Contact Now Chat Now

API 6A Nickel Alloy Inconel 718 Ring Type Joint Gasket In Flanges And Pipe Fittings

Description
Product Name: Ring Type Joint Gasket Material: Nickel Alloy
Size: Customizable Grade: Inconel,Incoloy,Monel,Hastelloy,Duplex
Application: Sealing And Gasketing In High Temperature And Corrosive Environments Shape: Customized
Sealing Performance: Good Surface Finish: Smooth
Highlight:

API 6A Inconel 718 Ring

,

Nickel Alloy Inconel 718 Ring

,

Inconel 718 Ring Type

API 6A Nickel Alloy Inconel 718 Ring Type Joint Gasket in Flanges and Pipe Fittings



UNS N07718 Ring Type Joint Gasket

API 6A nickel alloy inconel 718 ring type joint gasket has excellent mechanical properties like tensile, fatigue and creep-rupture, and it has excellent welding characteristics, resistant to postweld age cracking, oxidation resistant throughout its useful temperature range.

API 6A nickel alloy inconel 718 ring type joint gasket is made of Inconel 718, and inconel 718 is a high strength nickel base superalloy used for cryogenic temperatures up to long term service at 1200°F. The alloy is readily fabricated and may be welded in either the annealed or precipitation (age) hardened condition. Anneal 1700 -1850°F, air cool or faster. Age 1325°F 8 hours, furnace cool to hold at 1150°F, for a total aging time of 18 hours, air cool.



Applications:

Heat exchangers

Valves and pumps

Pressure vessels

Flanges and pipe fittings

Reactor vessels and agitators



Chemical Composition of Alloy 718 (%)

Grade UNS Density

Tensile Strength

(MPa min)

Yield Strength

(MPa min)

 Reduction of Area min (%) Elongation min (%) Hardness (HRC)
INCONEL 718 N07718 8.19 1275MPa min 1034MPa min 15% 12% min HRC 35-40



Ni Cr Fe C Mn S Si
50.0-55.0 17.0-21.0 Remainder 0.08max 0.35max 0.015max 0.35max
B P Mo Ti Al Cu Co
0.006max 0.015max 2.8-3.3 0.65-1.15 0.2-0.8 0.3max 1.0max




Some Materials of Ring Type Joint Gasket

Gasket Material DIN Grade ASTM Grade Werkstoff number
MONEL 400 NiCu30Fe N04400 2.436
INCONEL 600 NiCr15Fe N06600 2.4816
INCONEL 625 NiCr22Mo9Nb N06625 2.4856
INCONEL 718 / N07718 /
INCOLOY 800 X5NiCrAlTi31-20 N08800 1.4958
INCOLOY 825 NiCr21Mo N08825 2.4858
INCOLOY 028 X1NiCrMoCuN 31 27 4 N08028 1.4563
HASTELLOY C276 NiMo16Cr15W N10276 2.4819
F44 X1CrNiMoCuN20-18-7 S31254 1.4547



Tag:

Forged Rings,

Nickel Alloy Rings,

Inconel Ring
