Nickel Alloy Concentric Eccentric Reducer , Butt Weld Tube Fittings For Petroleum

Nickel Alloy Eccentric Reducers For Petroleum Butt Welding Steel Tube Fittings

Nickel Alloy Concentric Reducers  is a component used in the pipelines to reduce its size from large to small bore in accordance to the inner diameter. The length of the reduction here is equal to an average of the smaller and larger pipe diameters. Here, the reducer can be used as a diffuser or a nozzle. The reducer helps in meeting the existing piping of varied sizes or hydraulic flow of the piping systems.

Applications of Nickel Alloy Reducer
The usage of a steel reducer is carried out in the chemical factories and power plants. It makes the piping system reliable and compact. It safeguards the piping system from any kind of adverse impact or thermal deformation. When it is on the pressure circle, it prevents from any type of leakage and is easy to install. The nickel or chrome coated reducers extends the product life, useful for high vapor lines, and prevents corrosion.

Concentric Reducer VS Eccentric Reducer Differences
Concentric reducers are widely used while eccentric reducers are applied to maintain the top and bottom pipe level. Eccentric Reducers also avoids trapping of air inside the pipe, and Concentric Reducer removes noise pollution.

Connection Types of Pipe Reducer
Ranges from different connection types, pipe reducer could be classified with socket weld reducer and butt weld reducer.

Reducer Types


• Concentic Reducer:

This reducer consists of the symmetrical and conical shaped fittings that enlarge or reduce the diameter equally about the center line. For an example, when 1” pipe transitions to ¾” pipe, then the top or bottom of the pipe do not remain level. It is widely used when single or multiple diameter changes.

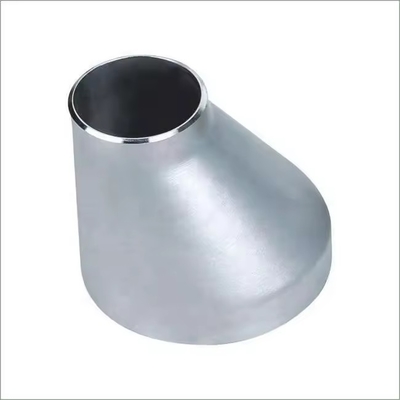

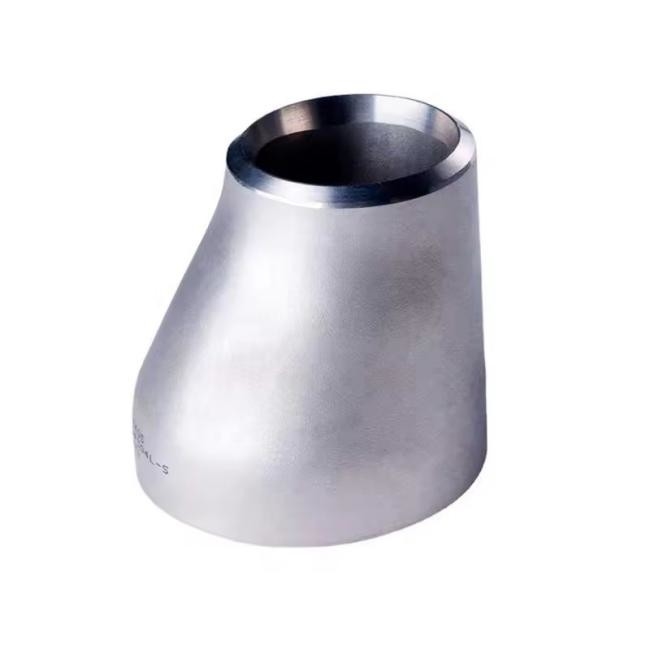

• Eccentric Reducer:

A conically shaped fitting that reduces or enlarges the diameter, but it is not symmetrical about the center line. This is used in pipe-work systems for reducing the diameter of a pipe from one size to larger or small size.

The following table lists only some of the grades

Application of Nickel Alloy Products
