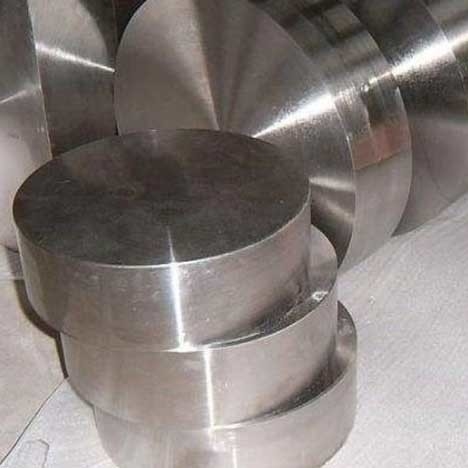

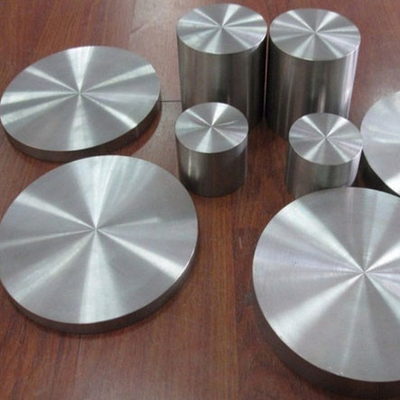

Nickle Alloy Forging Discs Monel K500 UNS N05500 Centrifugal Pumps Marine Industry

Nickle Alloy Forging Discs Monel K500 UNS N05500 Centrifugal Pumps Marine Industry
Nickle Alloy Forging Discs Monel K500 UNS N05500 Centrifugal Pumps Marine Industry Nickle Alloy Forging Discs Monel K500 UNS N05500 Centrifugal Pumps Marine Industry

Large Image :  Nickle Alloy Forging Discs Monel K500 UNS N05500 Centrifugal Pumps Marine Industry

Product Details:
Place of Origin: China
Brand Name: DINGSCO
Certification: ISO 9001:2015,PED 2014/68/EU,API 6A,API-20B,TSG,NORSOK
Model Number: According to customers requirements
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: According to Customers' Requests
Delivery Time: (Sample Order) 7 days
Payment Terms: T/T
Supply Ability: Negotiable
Contact Now

Nickle Alloy Forging Discs Monel K500 UNS N05500 Centrifugal Pumps Marine Industry

Description
Product Name: Nickle Alloy Forging Discs Grade: Monel K500
UNS: N05500 Density: 8.44g/cm³
Co-eff Of Expansion: 7.7µm/m/°C Elastic Modulus: 179Gpa
Highlight:

n05500 nickel alloy bar

,

n05500 nickel alloy forging bar



Nickle Alloy Forging Discs Monel K500 UNS N05500 Centrifugal Pumps Marine Industry



Nickle Alloy disc, a thin, projecting metal stripattached to asemiconductor to dissipateheat. It is widely used incatering and kitchenware, elevators, chemical equipment, machinery manufacturing, architectural decoration, metaproducts, automobiles, pressurevessels and other felds.





Monel K500, is a age-hardenablenickel-copper alloy that combines the corrosion resistanceproperties of Monel 400 with high strength corrosion fatigue and erosion resistance properties. It is precipitation hardenable through theadditions of aluminum and titanium. The chemica composition of It retains the excellent corrosionresistant characteristics of alloy 400.When compared with Monel 400, it has enhanced strength and hardnessafter precipitation hardening. It has approximately three times the yield strength and doublethe tensile strength of alloy 400.It can befurther strengthened oy cold working before the orecipitation hardening. It should be annealed when welded and theweldment then stress relieved before aging.





Machining:
Nickel based alloys can be difficult tomachinine.However, it should be emphasized that thesealloys can be machined using conventional productionmethods at satisfactory rates. These alloys harden rapidlygenerate high heat during cutting, weld to the cuttingtool surface and offer high resistance to metal removabecause of their high shear strengths. The following arekey points which should be considered during machining operations: capacity/tools/positive cut/lubrication.





Recommended Tool Types & Machining Conditions:

Operations Carbide Tools
Roughing, with severeinterruption Turning or Facing C-2 andC-3 grade: Negative rakesquare insert, 45° SCEA1,1/32 in. nose radius. Tooholder: 5° neg. back rake5° neg. side rake. Speed:30-50 sfm,0.004-0.008 in.feed, 0.150 in depth of cut.Dry2, oil3, or water-base coolant 4.
Normal roughing Turning or Facing C-2 orC-3 grade: Negative ratesquare insert, 45° SCEA,1/32 in nose radius. Tooholder: 5° neg. back rake5° neg. side rake. Speed:90 sfm depending on rigidity of set up, 0.010 infeed, 0.150 in. depth ofcut. Dry, oil, or water-base coolant.
Finishing Turning or Facing C-2 0rC-3 grade: Positive rakesquare insert, if possible45° SCEA, 1/32 in.noseradius. Tool holder: 5° pos.back rake, 5° pos. siderake.Speed: 95-110 sfm0.005-0.007 in. feed,0.040 in. depth of cut. Dryor water-base coolant.
Rough Boring C-2 or C-3 grade: lf inserttype boring bar, use standard positive raketools with largest possibleSCEA and 1/16 in. nose radius. lf brazed tool bargrind 0° back rake, 10° posside rake, 1/32 in. nose radius and largest possible SCEA.Speed: 70 sfm depending on the rigidityof setup, 0.005-0.008 infeed, 1/8 in. depth of cut.Dry, oil or water-base coolant.
Finish Boring C-2 or C-3 grade: Usestandard positive raketools on insert type bars.Grind brazed tools as fofinish turning and facingexcept back rake may bebest at 0°. Speed: 95-110sfm,0.002-0.004 in feed.Water-base coolant.





Chemical Composition:



Element Ni Cu C Mn Fe S Si Al Ti
Minimum(%) 63 27 - - - - - 2.3 0.35
Max(%) - 33 0.25 1.5 2.0 0.01 0.5 3.15 0.85





Thermal Properties:



Temperature Mean Linear Expansiona Thermal Conductivityb Specific Heatb Electrical Resistivityc
°F °C in/in/°F x 10-6 µm/m•°C Btu-in/h/ft2 /°F W/m•°C Btu/lb/°F J/kg•°C ohm-circ mil/ft µΩ•m
-320 -200 6.2 11.2 - - - - 330.8d 0.550
-250 -157 6.5 11.7 86 12.3 0.071 297.3 - -
-200 -130 6.8 12.2 92 13.1 0.077 322.4 - -
-100 -70 7.2 13.0 103 14.7 0.087 364.3 - -
70 21 - - 121 17.2 0.100 418.7 370 0.615
200 100 7.6 13.7 136 19.4 0.107 448.0 372 0.618
400 200 8.1 14.8 156 22.2 0.114 477.3 378 0.628
600 300 8.3 14.9 178 25.4 0.117 489.9 385 0.640
800 400 8.5 15.3 198 28.2 0.120 502.4 390 0.648
1000 500 8.7 15.7 220 31.4 0.125 523.4 393 0.653
1200 600 9.1 16.4 240 34.2 0.132 552.7 396 0.658
1400 700 9.3 16.7 262 37.3 0.141 590.3 400 0.665
1600 800 9.6 17.3 282 40.2 0.157 657.3 408 0.678
1800 900 - - 302e 43.1 0.186e 778.7 418 0.695

aBetween 70°F (21°C) and temperature shown. Age-hardened material.

bMaterial was in the annealed condition prior to test.

cElectrical resistivity is markedly influenced by thermal history because of the age- hardening characteristics of the alloy. The data shown represent values measured on decreasing temperature on material in an equivalent to annealed condition with a small amount of age hardening.

dResistivity of sample from this test tested at room temperature: 355.5 ohm/circ mil/ft.

eExtrapolated.





Processing Flow Chart:



Nickle Alloy Forging Discs Monel K500 UNS N05500 Centrifugal Pumps Marine Industry 0



Nickle Alloy Forging Discs Monel K500 UNS N05500 Centrifugal Pumps Marine Industry 1
