Nickel Alloy Discs Inconel 718 UNS NO7718 Forged Corrosion Resistance Grind Polish Cut off

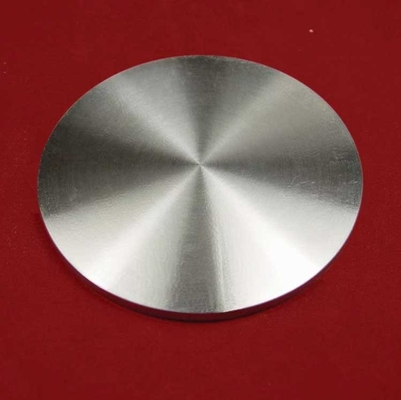

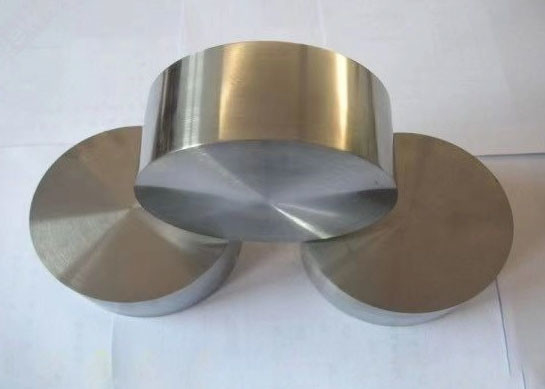

Nickel Alloy Discs Inconel 718 UNS NO7718
Nickel Alloy disc, a thin, projecting metal stripattached to asemiconductor to dissipate heat. It is widely used incatering and kitchenware,elevators,chemical equipment,machinery manufacturing,architectural decoration, metaproducts, automobiles, pressurevessels and other felds.
Inconel 718(UNS NO7718) is a GammaPrime strengthened aloy with excelent mechanical properties at elevated temperatures, as wel as cryogenidtemperatures. Suitable for temperatures up to around1300 °F. Can be readily worked and age hardened. Excellent strength from -423 °Fto 1300°F(-253 'C to 705C).Age hardenable and may be welded in fully agedcondition, Excellent oxidation resistance up to 1800 °F(980 °C).Typically sold in the solution annealed temperbut can be ordered aged, cold worked, or cold worked &aged. Alloy 718 is a high strength, nickel base, superalloy usedfor cryogenic temperatures up to long term service at1200 °F. This alloy is readily fabricated and may be weldedin either the annealed or precipitation hardened(aged)condition.718 is annealed at 1700-1850 'F and air cooledor faster. lt is aged at 1325 °F for 8 hours, furnace cooledto hold at 1150 'F, for a total aging time of 18 hours, thenair cooled.Alloy 718 wil show a contraction of 0.0008inch/inch after precipitation hardening. Good mechanical properties: tensile,fatigue, and creep-rupture. Excelent welding characteristics and resistant to postweld age cracking. Oxidation resistant throughout its useful temperature range.
Applications:
Uses for this alloy tend to be in the field of gas turbinecomponents and cryogenic storage tanks. Alloy 718 iscommonly used in jet engines, pump bodies and partsrocket motors and thrust reversers, and hot extrusiontooling.Other popular uses are high strength bolting anddown hole shafting.
Mechanical Properties:
The typical properties listed can usually be provided inrounds, sheet, strip, plate,& custom forgings. We havethe equipment to produce small quantities in special sizesto meet our customers’ specific needs. The table belowshows Special Metals' Nominal Room-TemperatureMechanical Properties of Alloy 718 Bars, Forgings, & Ringsand Sheet, Strip,& Plate. For most common forms andexceptions, check out the datasheet linked underneath the table.
| Properties |
YS(Ksi) |
TS(Ksi) |
EL(%) |
HRC |
| Room Temperature |
180 |
150 |
12 |
36 |
| 1200℉(<0.025-in) |
140 |
115 |
- |
- |
| 1200℉(>0.025-in ) |
145 |
120 |
5 |
- |
Chemical Composition:
| Element |
Ni |
Cr |
S |
C |
Mn |
Si |
Mo |
Cu |
Co |
Al |
Nb |
B |
P |
| Minimum(%) |
50 |
17 |
- |
- |
- |
- |
2.8 |
- |
- |
0.2 |
4.75 |
- |
- |
| Max(%) |
55 |
21 |
0.015 |
0.08 |
0.35 |
0.35 |
3.3 |
0.3 |
1.0 |
0.8 |
5.5 |
0.006 |
0.015 |
Our QC Activities and Test Methods:
| Chemical Analysis |
ASTM E1473ensile |
Test |
ASTM E8 |
| Hardness Test |
ASTM E 10,E 18 |
PMl Examination |
DINGSCO SOP |
| Ultrasonic NDT |
BS EN 10228 |
Liquid Penetrant NDT |
ASTM E 165 |
| Dimensional and inspection |
DINGSCO SOP |
Roughness Test |
DINGSCO SOP |
| Impact Test |
ASTM E 23 |
Low Temperature lmpact Test |
ASTM E 23 |
| Creep and Stress Rupture Test |
ASTM E 139 |
Hydrogen Induced Cracking Test |
NACE TM-0284 * |
| Inter Granular Corrosion Test |
ASTM A 262 * |
Sulfide Stress Corrosion Cracking Test |
NACE TM-0177 * |
| Pitting and Crevice Corrosion Test |
ASTM G 48 * |
Macro Etching Test |
ASTM E 340* |
| Grain Size Test |
ASTM E 112 * |
|
|
* Done by state own third party laboratory
Processing Flow Chart:
