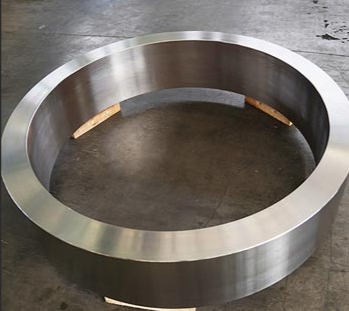

ASTM B564 Monel Ring Forged Nickel Alloy For Extreme Operation
Comprehensive Analysis of ASTM B564 Monel 400 Forged Rings
I. Material Fundamentals: Composition & Standards
▶Definition: Forged rings conforming to ASTM B564 are manufactured from Monel 400 (UNS N04400), a nickel-copper solid-solution alloy (no precipitation-hardening phases; strength enhanced via cold working).
▶Chemical Composition (per ASTM B564):
| Element |
Mass Fraction Range |
Core Function |
| Ni |
63–67% |
Dominates corrosion resistance (seawater, acids/bases) |
| Cu |
28–34% |
Synergizes corrosion resistance; improves ductility and thermal conductivity |
| Fe |
≤2.5% |
Auxiliary strengthening; balances cost and performance |
| Mn |
≤1.5% |
Enhances hot workability |
| Si |
≤0.5% |
Reduces hot cracking during forging |
II. Core Performance: Mechanical & Corrosion Resistance
1.Mechanical Properties (Annealed Condition, ASTM B564 Specification):
▶Tensile Strength: ≥550 MPa (can exceed 800 MPa with cold working; forged rings are typically supplied annealed for machinability).
▶Yield Strength: ≥240 MPa.
▶Elongation: ≥35% (high ductility enables complex forging shapes).
2.Corrosion Resistance (Industrial Advantages):
▶Superior Scenarios: Resists seawater, hydrofluoric acid (HF, full concentration including boiling), dilute sulfuric acid, and caustic soda — ideal for marine and chemical applications.
▶Limitations: Susceptible to corrosion in strongly oxidizing environments (e.g., FeCl₃ solutions, concentrated nitric acid).
▶Temperature Range: Stable from -196℃ (cryogenic) to 538℃ (1000°F), maintaining toughness at elevated temperatures.
III. Manufacturing & Compliance
1.Forging Process:
▶Produced via open-die/closed-die forging with a minimum forging ratio of 3 (ensures densified microstructure, eliminating casting defects).
▶Post-processing: Typically annealed (relieves forging stresses and optimizes machinability).
2.ASTM B564 Mandatory Inspections:
▶Chemical Analysis: Batch-wise verification of Ni, Cu, etc., ensuring compositional compliance.
▶Non-Destructive Testing (NDT): 100% ultrasonic testing (UT) to detect internal defects.
▶Mechanical Verification: Tensile testing for strength/ductility; grain size analysis for microstructural uniformity.
3.Typical Dimensions (Industry Standard, Customizable):
▶Outer Diameter (OD): 300–1500 mm (oversized rings available via custom orders).
▶Height (Thickness): 20–200 mm.
▶Sealing Faces: Machinable to RTJ (Ring Type Joint), RF (Raised Face), or FF (Flat Face) — compatible with ASME B16.5 flange systems.
IV. Industrial Applications & Value
1.Key Sectors:
▶Marine Engineering: Seawater pipeline flanges, marine valve forgings (medium-low pressure scenarios; opt for Monel K500 for high-pressure applications).
▶Chemical Processing: HF reactor connections, acid/alkali storage tank flanges (resists dilute corrosives).
▶Energy Systems: Nuclear condenser flanges, low-sulfur oil/gas transmission pipelines.
▶General Machinery: Pump sleeves, instrument sealing rings (leveraging high ductility and corrosion resistance).
2.Competitive Benchmarking:
| Parameter |
Monel 400 Forged Ring (ASTM B564) |
Monel K500 Forged Ring (Precipitation-Hardened) |
316L Stainless Steel Forged Ring |
| Strength |
Medium (550 MPa; cold-workable) |
High (>1000 MPa; age-hardened) |
Low (≈520 MPa) |
| Seawater/HF Resistance |
Excellent |
Excellent (with higher strength) |
Poor (prone to pitting) |
| Cost |
Moderate |
High (premium for age-hardening) |
Low |
V. Selection Guidelines
▶Optimal Scenarios: Prioritize for medium-low pressure, seawater/weakly corrosive environments (e.g., offshore platform auxiliary piping, chemical dilute acid handling).
▶Upgrades: For high-temperature, high-pressure, or sulfur-rich corrosive conditions (e.g., Christmas tree main valves), upgrade to Monel K500 (ASTM B564-compliant, 30%+ strength improvement).
▶Cost Tradeoffs: 316L stainless steel reduces costs for mild corrosion (≤6.4 MPa) but offers 1/3 the service life of Monel 400.
Conclusion: ASTM B564 Monel 400 forged rings are a cost-effective workhorse for medium-low pressure, seawater/weak corrosive environments. For extreme strength or corrosion demands, Monel K500 (same standard) provides upgraded performance.
