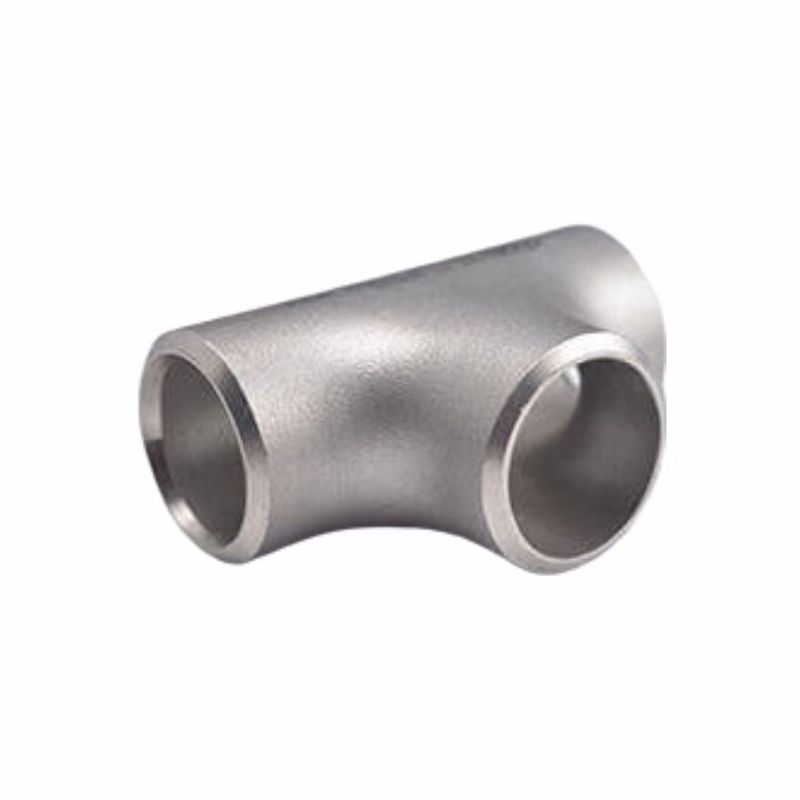

Inconel 718 Tee Ni-Cr-Fe Alloy With High-Temperature Strength
Inconel 718 tee is a high-performance nickel-based alloy pipe fitting that plays a crucial role in extreme working conditions.
I. Material Basis: Properties of Inconel 718 Alloy
Inconel 718 is a precipitation-hardening nickel-chromium-iron alloy (UNS N07718). It features a high nickel content (50 - 55%), high chromium content (17 - 21%), and high niobium content (4.75 - 5.5%), along with elements such as molybdenum (2.8 - 3.3%) and titanium (0.65 - 1.15%):
1.Matrix Strengthening: Nickel forms a face-centered cubic austenitic matrix, ensuring high-temperature toughness and providing an antioxidant base.
2.Precipitation Strengthening: Niobium and titanium form γ′′ (Ni₃Nb) and γ′ (Ni₃(Al,Ti)) strengthening phases. After aging heat treatment, they significantly enhance strength and creep resistance.
3.Corrosion Resistance Assurance: Chromium forms a dense chromium oxide film, resisting high-temperature oxidation and sulfide corrosion; molybdenum optimizes resistance to pitting and crevice corrosion.
II. Core Performance of the Tee (Compared with Conventional Alloy Tees)
| Performance Dimension |
Properties of Inconel 718 Tee |
Technical Value |
| High-Temperature Strength |
Tensile strength exceeds 1275MPa and yield strength exceeds 700MPa at 650 - 700℃ (after aging treatment). |
In high-temperature and high-load scenarios such as aero-engine turbine disks and nuclear power main pipelines, there is no significant deformation during long-term service (compared with 316L, strength is increased by 2 - 3 times). |
| Creep Resistance |
Creep deformation < 0.1% under constant stress at 700℃ for 1000 hours (per ASTM standards). |
Suitable for hot-end components of gas turbines (such as combustor manifolds), resisting high-temperature persistent loads, with a service life exceeding 20,000 hours (common alloy tees < 5,000 hours). |
| Corrosion Adaptability |
Resistant to seawater (containing chloride salts), sulfuric acid/hydrochloric acid (medium to low concentrations), and high-temperature oxidizing atmospheres (≤1000℃). |
In marine engineering (high-pressure pipelines for seawater desalination) and petrochemical industries (acidic medium transportation), the corrosion rate < 0.025mm/year (corrosion rate of 316L in seawater environment > 0.1mm/year). |
| Low-Temperature Stability |
No toughness degradation at - 253℃ (deep cold), with Charpy impact energy > 80J (tested at - 196℃). |
In liquefied natural gas (LNG) transportation and aerospace liquid hydrogen pipelines, it avoids the risk of low-temperature brittle fracture and ensures ultra-low-temperature sealing reliability. |
III. Typical Application Scenarios
1.Aerospace
▶Scenarios: Turbine manifold pipes of aero-engines, fuel manifolds of rocket propulsors
▶Requirements: High temperature (800 - 900℃), high vibration, lightweight
▶Value: The specific strength (strength/density) of Inconel 718 tee exceeds that of titanium alloy, reducing weight by 15 - 20%; excellent thermal fatigue resistance, capable of withstanding more than 1000 thermal cycles (common alloy tees < 200 cycles).
2.Nuclear Energy Field
▶Scenarios: Coolant manifolds of primary circuits of pressurized water reactors, helium transportation pipelines of high-temperature gas-cooled reactors
▶Requirements: Radiation resistance, resistance to high-temperature and high-pressure water corrosion (300 - 350℃, 15 - 16MPa)
▶Value: Inconel 718 contains niobium, which can inhibit irradiation swelling; in high-temperature and high-pressure water, the corrosion allowance > 2mm (design life 60 years), far exceeding that of carbon steel/stainless steel tees.
3.Marine Engineering
▶Scenarios: Riser manifold tees for deep-sea oil and gas exploitation, high-pressure reverse osmosis (RO) systems for seawater desalination
▶Requirements: Resistance to seawater erosion corrosion, resistance to stress corrosion cracking (SCC) in marine environments
▶Value: In a seawater environment with 3.5% salt content, the pitting potential of Inconel 718 tee > 1.2V (about 0.3V for 316L), avoiding local corrosion caused by chloride ions; SCC resistance improved by more than 5 times.
IV. Processing and Adaptability
1.Hot Working Difficulties
▶Due to high alloying (high niobium and molybdenum contents), forging requires strict temperature control (950 - 1050℃); otherwise, hot cracking is likely to occur. A "small deformation, multiple passes" process is required to ensure uniform structure.
2.Welding Characteristics
▶Suitable for arc welding and plasma welding, with no post-welding cracking tendency (due to the delayed precipitation of γ′′ phase, avoiding welding stress concentration); it is recommended to use matching welding materials (such as ERNiFeCr - 2), and the strength of welded joints can reach more than 90% of the base metal.
3.System Adaptability
▶It can be seamlessly connected with Inconel 718 pipes, flanges, etc., to form an "all-alloy system", avoiding galvanic corrosion from dissimilar material connections; it can also be surface-treated (such as silver plating, nitriding) to adapt to higher cleanliness (such as high-purity gas transportation in the semiconductor industry) or more wear-resistant scenarios (such as powder transportation pipelines).
Summary
Inconel 718 tee is a "customized pipe fitting for extreme working conditions". With its all-round advantages of high-temperature high strength, creep resistance, and corrosion resistance, it has become a "necessary component" in high-end fields such as aerospace, nuclear energy, and marine engineering. Its value is not only in physical connection but also in being the core support for ensuring the "safe, long-life, and high-performance" operation of systems in high-temperature, high-pressure, and strong-corrosion environments.
